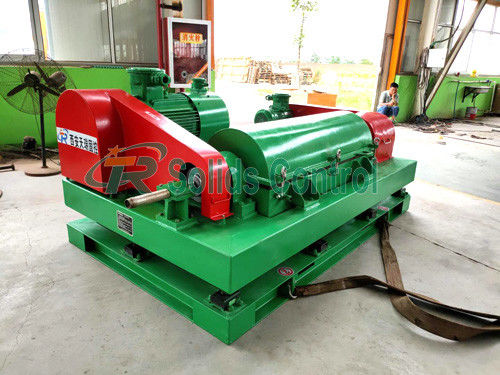

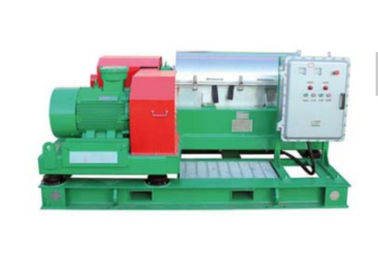

Solids Control Oilfield Drilling Mud Centrifuge

Solids Control Oilfield Drilling Mud Centrifuge
Solids Control Oilfield Drilling Mud Centrifuge
video play

Large Image :  Solids Control Oilfield Drilling Mud Centrifuge

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRLW355NB-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or plyerwood carton
Delivery Time: 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 2000 Sets / Month
Detailed Product Description
Bowl Diameter: 355mm Bowl Length: 1250mm
Bowl Speed: 0~3200r/min Capacity: 40m³/h
G-Force: 0~2035 Separation Point: 2-7μm
Differential Speed: 0~30r/min Main Drive Motor: 37kw
Auxiliary Motor Power: 7.5kw Ex Standard: ExdIIBt4/IECEX/A-TEX
Weight: 3200kg Dimension: 2600*1620*1750mm
High Light:

Oilfield Drilling Mud Centrifuge

,

Solids Control Drilling Mud Centrifuge

Mud Centrifuge and Solids Control Equipment in Oilfield



Product Introduction


TR Solids Control is a lead and professional manufacturer of decanter centrifuge. TR decanter centrifuge is high in recovery rate, effective in solids control and remarkable in the reduction of cost spent on drilling mud resupplying and management. Below is the main technical data of our decanter centrifuge.

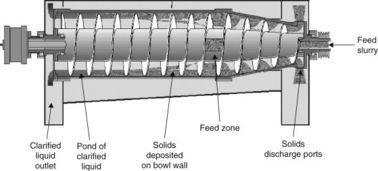

Centrifugal are used to process unweighted and weighted, water-based and oil-based drilling fluids (muds). Mechanical energy is utilized to increase the gravitational force exerted on solids that are present in the mud system. Decanter Centrifuge are able to apply over 3,000 G-forces on the liquid/solids mixture, which separates the heavier solids from the lighter solids. Additionally, high G-forces separate fine solids from liquid.



Mechanical separation of solids from the mud system through the use of a decanter centrifuge is a highly-effective means of maintaining proper mud weight and viscosity. When used in conjunction with other , decanter centrifuge enable users to maintain the mud properties within the prescribed range as per the drilling program. Typically, decanting centrifuge is the final processing units in the arrangement of solids control equipment. Decanter centrifuge preceded by gas busters, gumbo removal equipment (if utilized), , (if utilized), and hyrdocyclones.



Key Features of TRLW Series Decanter Centrifuge



  • Drum assembly is protected with demountable support frame in transit, preventing damage to bearing.
  • Schneider or Siemens electrical components. Current overload & mechanical limit switch dual protections.
  • Straight and cone section of the drum are made from 2205 duplex stainless steel material, adopt centrifugal casting process.
  • Screw carrier adopts YG6 wear-resistant alloy sheet protection. With long life, easy maintenance and replacement.
  • Using imported SKF and NSK bearings to improve equipment stability and bearing life.
  • Remaining components of the drum assembly are made from SS316L.
  • Diversion port of screw pusher and slag-drip opening of the drum are protected by replaceable wear-resistant alloy sleeve, delaying the service life and maintenance cycle.
  • Frequency control facilitates customers to adjust speed at any time, meeting different working conditions.



Technical Specifications of TR Decanting Centrifuge



Model TRLW600B-1 TRLW450N-1 TRLW450N-2 TRLW355N-1 TRLW355NB-1
Bowl Diameter 600mm 450mm 450mm 355mm 355mm
Bowl Length 1500mm 1000mm 1250mm 1250mm 1250mm
Bowl Speed 2200r/min 2200r/min 3200r/min 3200r/min 0~3200r/min
Max Capacity 90m³/h 50m³/h 50m³/h 40m³/h 40m³/h
G-Force 815 815 2035 2035 0~2035

Separation

point

5~7μm 5~7μm 5~7μm 2~5μm 2~7μm

Gear Box

Speed

40r/min 40r/min 30r/min 30r/min 0~3030r/min

Gear Box

Ratio

35:1 57:1

Main Motor

Power

55kw 30kw 37kw 30kw 37kw

Auxiliary

Motor Power

15kw 7.5kw 7.5kw 7.5kw 7.5kw
EX Standard ExdIIBt4/IECEX/A-TEX
Weight 4800kg 2700kg 3200kg 2900kg 3200kg
Dimension

2900*1900

*1750mm

2600*1860

*1750mm

2600*1860

*1750mm

2600*1620

*1750mm

2600*1620

1750mm

(Note: Rotary speed can be adjustable as per user's requirements)



Solids Control Oilfield Drilling Mud Centrifuge 0


TR exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
