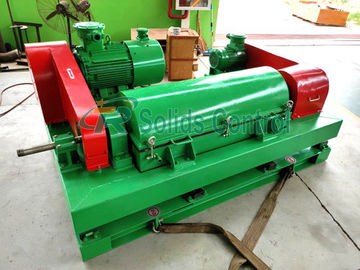

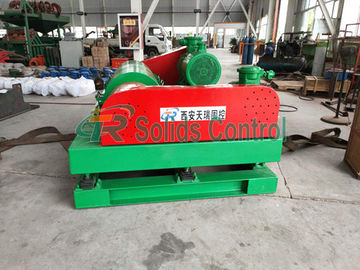

Horizontal 37kw 3200r/Min Drilling Mud Centrifuge

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

Horizontal 37kw 3200r/Min Drilling Mud Centrifuge

Horizontal 37kw 3200r/Min Drilling Mud Centrifuge
Horizontal 37kw 3200r/Min Drilling Mud Centrifuge
video play

Large Image :  Horizontal 37kw 3200r/Min Drilling Mud Centrifuge

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRLW450N-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or plyerwood carton
Delivery Time: Within 25 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20 Sets / Month
Detailed Product Description
Bowl Diameter: 450mm Bowl Speed: 3200r/min
G-Force: 2035 Differential Speed: 30r/min
Auxiliary Motor Power: 7.5kw Weight: 3200kg
Bowl Length: 1250mm Capacity: 50m³/h
Separation Point: 5-7μm Main Drive Motor: 37kw
Ex Standard: ExdIIBt4/IECEX/A-TEX Dimension: 2600*1860*1750mm
High Light:

3200r/Min Drilling Mud Centrifuge


37kw Drilling Mud Centrifuge

3200r/min High Speed Drilling Mud Decanter Centrifuge

Product Introduction
LW series horizontal screw decanter centrifuges have continuous feeding and discharging. The settling speed is determined by particle size, difference in density between solids and liquids as well as their viscosity. It can clarify, dehydrate with 0.002-3mm solid-phased particles, and classify with 1μm-5μm solid-phased particles.


Working principle
The basic principle is the drum and the spiral feeder rotate in the same direction but with a certain speed difference: The material is led into the feeding spiral inner cylinder via the feeding pipe and after speeding up, enters the drum: Under the action of the centrifuge force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer: The solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and after dehydration in the drying area, is discharged under full-speed running.
Characterstics of Our Drilling Decanter Centrifuge

  1. Drum assembly is protected with demountable support frame in transit, preventing damage to bearing;
  2. Straight and cone section of the drum are made from 2205 duplex stainless steel material, adopt centrifugal casting process;
  3. Remaining components of the drum assembly are made from SS316L;
  4. Screw carrier adopts YG6 wear-resistant alloy sheet protection. With long life, easy maintenance and replacement;
  5.  Diversion port of screw pusher and slag-drip opening of the drum are protected by replaceable wear-resistant alloy sleeve, delaying the service life and maintenance cycle.
  6.  Using imported SKF and NSK bearings to improve equipment stability and bearing life;
  7.  Frequency control facilitates customers to adjust speed at any time, meeting different working conditions;
  8.  Schneider or Siemens electrical components. Current overload & mechanical limit switch dual protections.

Main Specification of TRLW Series Decanting Centrifuge

Bowl Diameter600mm450mm450mm355mm355mm
Bowl Length1500mm1000mm1250mm1250mm1250mm
Bowl Speed2200r/min2200r/min3200r/min3200r/min0~3200r/min
Max Capacity90m³/h50m³/h50m³/h40m³/h40m³/h



Gear Box


Gear Box


Main Motor


Motor Power







(Note: Rotary speed can be adjustable as per user's requirements)
