Product Details:
Payment & Shipping Terms:
|
| Capacity: | 240m3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 600*600mm |
| Weight: | 170 Kg | Application: | Oil Well Drilling, Tunnel, Subway |
| High Light: | Solid Control Mud Mixing Hopper,DN150 Mud Mixing Hopper |
||

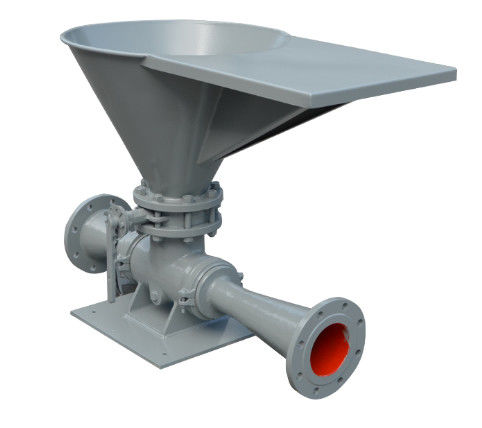

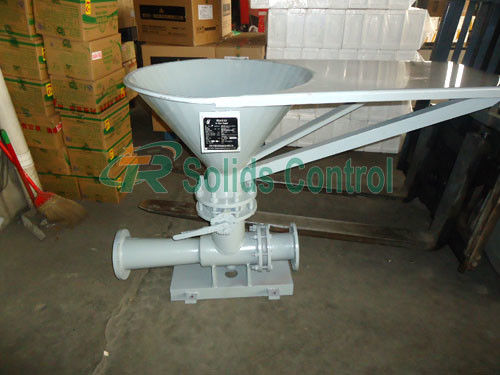

Mud Mixing Hopper Used for Solid Control System
Product Introduction
Our direct injected mixing hopper is a directly injected mixer of the additive material of drilling fluid. It is mainly used to mix drilling fluid and additives quickly and uniformly to improve drilling fluid's performance. It also can have shearing and hydration system with shear pump. We have two models with metric and British system.
Jet mud mixer is a combination of centrifugal pump and mixing hopper with pipelines. It is scientifically designed to be the optimal solution for mixing of both mud bulk material and mud additive chemicals into the drilling fluid. TRSLH series jet mud mixer is composed of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base. Its hopper and centrifugal pump either can be combined to use or be installed separately.
Main Advantages of TRSL Mud Hopper:
1. Quick feeding
Strong suction with high speed jet nozzle.
2. Strong mixing capability
Venturi tube in outlet.
3. Easy operation
Standard butterfly valve on inlet.
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
TR Solids Control is a professional supplier of solid control equipment, various petroleum equipment, including rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
