Product Details:
Payment & Shipping Terms:
|
Size: | 89-340mm | Connection Thread: | NC26, NC31, NC38, NC50, 6-5/8 REG |
---|---|---|---|
Max. Catch Size(Sprial): | 2-1/8"-5" | Max. Catch Size(Basket): | 1-1/3"-4-1/2" |
Standard: | API 5DP | Material: | Carbon Steel |
Processing Type: | Forging | Application: | Well Drilling, Oilfield Downhole |
High Light: | Releasable Reversing Overshot,Spiral Type Drill Spare Parts |

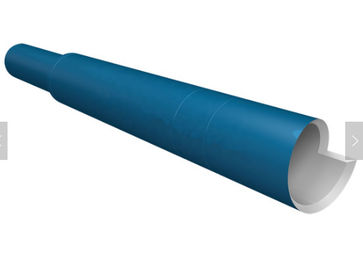

Spiral Type Releasing Overshot Circulating Overshot for Oilfield
Product Overview
Overshot is one of the fishing tools which is fishing the pipes externally. It can catch drill collar, drill pipe, tubing, subs and other pipes. Because of the seals,the fluid can circulate with the high pump pressure after catching the fish. The top of the fish will be milled by under mill shoe. It can also work with jars to catch the stuck fishes. If the catched fish can't be release from stucking, we should release the overshot and lifting the drill string.
Releasing and circulating overshot is LT-T type special external fishing tool used for fishing drill collar, drill pipe, tubing and other fishes in drilling and work over operation.
TR Solids Controol is a company that manufactures different oilfield solid control and down hole tools and accessories such as shale shaker, mud cleaner, decanter centrifuge, tubing anchor,torque anchor,packer,centralizer,sucker rod guide,downhole gas separator,couplings.
Construction
Our Series 150 Overshot consists of three outside parts: Top Sub, Bowl, and Standard Guide. The Basic Overshot may be dressed with either of two sets of internal parts, if the fish diameter is near the maximum catch of the Overshot, a Spiral Grapple, Spiral Grapple Control, and Type "A" Packer are used. If the fish diameter is considerably below maximum catch size (?" or more) a Basket Grapple and a Mill Control Packer are used.
Technical Data of TR Releasing and Circulating Overshot
Type | O.D.(mm) | Max. catch size(mm) | API connection | |
Spiral Grapple | Basket Grapple | |||
LT-T89 | 89 | 60.3 | 47.6 | NC26 |
LT-T92 | 92 | 73 | 63.5 | NC26 |
LT-T105 | 105 | 85.7 | 73 | NC31 |
LT-T143 | 143 | 120.6 | 102 | NC38 |
LT-T168 | 168 | 127 | 114 | NC50 |
LT-T219 | 219 | 178 | 159 | NC50 |
LT-T340 | 340 | 286 | 260 | 6-5/8REG |
Packing & Shipping
Packaging Details: International Sea Transportation Packing ,Standard export packaging.
Delivery Time: Based on order quantity, normally it takes 25 days for production, Only 3 or 10 days if we have stock on your request size.
Our Service
1.We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. And the products have a long warranty period.
2.Our sales team will response for your question within 24 hours (Holidays Excluded)
3.Free replacement will provide once the failure confirmed caused by our product quality.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
