NC26 Solids Control Releasing Overshot Fishing Tool

NC26 Solids Control Releasing Overshot Fishing Tool
NC26 Solids Control Releasing Overshot Fishing Tool NC26 Solids Control Releasing Overshot Fishing Tool NC26 Solids Control Releasing Overshot Fishing Tool

Large Image :  NC26 Solids Control Releasing Overshot Fishing Tool

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRLT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Pcs Per Month
Detailed Product Description
Size: 89-340mm Connection Thread: NC26, NC31, NC38, NC50, 6-5/8 REG
Max. Catch Size(Sprial): 2-1/8"-5" Max. Catch Size(Basket): 1-1/3"-4-1/2"
Standard: API 5DP Material: Carbon Steel
Processing Type: Forging Application: Well Drilling, Oilfield Downhole
High Light:

Releasing Overshot Fishing Tool

,

API 5DP Fishing Tool

Lifting Lowing Technique Releasing Overshot Fishing Tool



Main Introduction



Our Series 150 Releasing and Circulating Overshot is an external fishing tool for engage, pack off and retrieve tubular fish, especially for fishing drill collar and drill pipe. The grapple of the overshot can be designed for different sizes of fish, so one overshot can be dressed with different size of grapple components for fishing different sizes of fish.



Xi'an TianRui Petroleum Machinery Equipment Company provides many kinds of wellhead equipment, down hole tools ,fishing tools and drilling tools,such as fishing spear ,Rotary Kelly,Drill pipe,casing head, tubing head, x-mas tree and some parts. We can provide API standard products. We not only have standard design wellhead products, but also provide products according to customer's requirements.

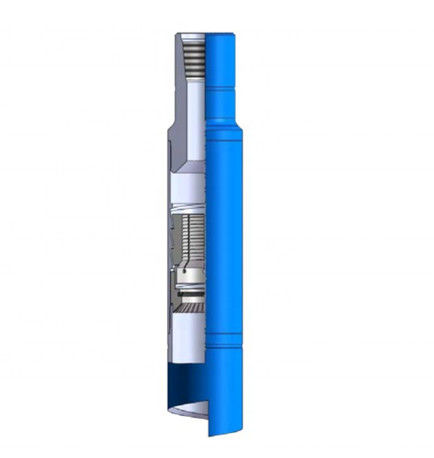

Main Construction
Our Series 150 Overshot consists of three outside parts: Top Sub, Bowl, and Standard Guide. The Basic Overshot may be dressed with either of two sets of internal parts, if the fish diameter is near the maximum catch of the Overshot, a Spiral Grapple, Spiral Grapple Control, and Type "A" Packer are used. If the fish diameter is considerably below maximum catch size (?" or more) a Basket Grapple and a Mill Control Packer are used.



When ordering or requesting quotation, please specify:
1. Type of overshot;
2. OD. of fish to be caught;
3. Size and type of top connection;
4. If size other than standard, please specify clearly. etc.



Technical Specifications of TR Releasing and Circulating Overshot



Type O.D.(mm) Max. catch size(mm) API connection
Spiral Grapple Basket Grapple
LT-T89 89 60.3 47.6 NC26
LT-T92 92 73 63.5 NC26
LT-T105 105 85.7 73 NC31
LT-T143 143 120.6 102 NC38
LT-T168 168 127 114 NC50
LT-T219 219 178 159 NC50
LT-T340 340 286 260 6-5/8REG


NC26 Solids Control Releasing Overshot Fishing Tool 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited had explored the international market and enlarged international cooperation 10 years .Due to the competitive price ,good quality and excellent service ,our products are sold to America,Canada, Brazil, Columbia, Venezuela,India,Iran,UAE,Russia ,Kazakhastan,Italy,Hungary ,Australia,Syria,Egypt ,etc. We have get good reputation from our oversea clients.



Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level manufacturer and supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
