Overshot Forging Downhole Oil Well Fishing Tools

Overshot Forging Downhole Oil Well Fishing Tools
Overshot Forging Downhole Oil Well Fishing Tools Overshot Forging Downhole Oil Well Fishing Tools Overshot Forging Downhole Oil Well Fishing Tools

Large Image :  Overshot Forging Downhole Oil Well Fishing Tools

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRLT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Pcs Per Month
Detailed Product Description
Size: 89-340mm Connection Thread: NC26, NC31, NC38, NC50, 6-5/8 REG
Max. Catch Size(Sprial): 2-1/8"-5" Max. Catch Size(Basket): 1-1/3"-4-1/2"
Standard: API 5DP Material: Carbon Steel
Processing Type: Forging Application: Well Drilling, Oilfield Downhole
High Light:

Downhole Oil Well Fishing Tools


Overshot Oil Well Fishing Tools

Oil Well Fishing Tools Releasing and Circulating Overshot


Product Introduction


Overshot is one of the fishing tools which is fishing the pipes externally. It can catch drill collar, drill pipe, tubing, subs and other pipes. Because of the seals,the fluid can circulate with the high pump pressure after catching the fish. The top of the fish will be milled by under mill shoe. It can also work with jars to catch the stuck fishes. If the catched fish can't be release from stucking, we should release the overshot and lifting the drill string.

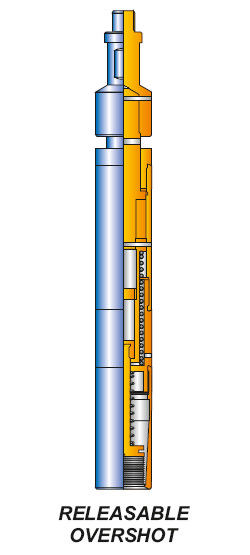

Our Series 150 Overshot consists of three outside parts: Top Sub, Bowl, and Standard Guide. The Basic Overshot may be dressed with either of two sets of internal parts, if the fish diameter is near the maximum catch of the Overshot, a Spiral Grapple, Spiral Grapple Control, and Type "A" Packer are used. If the fish diameter is considerably below maximum catch size (?" or more) a Basket Grapple and a Mill Control Packer are used.


The Releasing and Circulating Overshot is simple and rugged and is strongest tool available to externally engage, pack off and pull a fish.

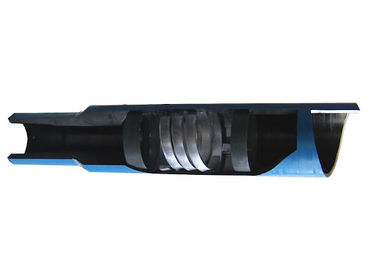

The internal catch mechanisms are of two basic types: a basket grapple and a spiral grapple. According to different uses, it may be equipped with some accessories, such as extension sub, wall hook, enlarged guide, etc.


When ordering or requesting quotation, please specify:
1. Type of overshot;
2. OD. of fish to be caught;
3. Size and type of top connection;
4. If size other than standard, please specify clearly. etc.


Main Parameters of TR Oilfield Releasing and Circulating Overshot


Type O.D.(mm) Max. catch size(mm) API connection
Spiral Grapple Basket Grapple
LT-T89 89 60.3 47.6 NC26
LT-T92 92 73 63.5 NC26
LT-T105 105 85.7 73 NC31
LT-T143 143 120.6 102 NC38
LT-T168 168 127 114 NC50
LT-T219 219 178 159 NC50
LT-T340 340 286 260 6-5/8REG

Overshot Forging Downhole Oil Well Fishing Tools 0


Our Service


1.We will keep track of each customer to get the feedback of product quality and service. And we will make an amendment according to your feedback.
2.If the product size is wrong, we will send the right one freely.
3.We guarantee the high quality. Please feel free to contact us if you found any damage. We will solve the problems ASAP.
4.We can provide product repair services.
The optimaler price, the best quality, the fastest speed, the best service.Your every piece of advice to us we will be very seriously treatment. If you have any suggestion to us, please surely tell us by mail in a timely manner You are not just a visitor, but our partner in common progress.


Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
