Reverse Circulation Drill NC Downhole Fishing Magnet

Downhole Tools Reverse Circulation Fishing Magnet

Product Description

Fishing Magnet is a junk retrieval tool designed to effectively remove metal particles, shavings, and debris from the bottom of the well bore. The process of retrieving small, oddly shaped objects is one of the most frequent and most difficult fishing jobs.

Reverse Circulation Fishing Magnet is a new fishing tool based on TOPMAG Standard Fishing Magnet. It combines advantages of Reverse Circulation Fishing Basket and Fishing Magnet. Its unique reverse-circulation design brings better performance on cleaning bottom hole.

Construction:

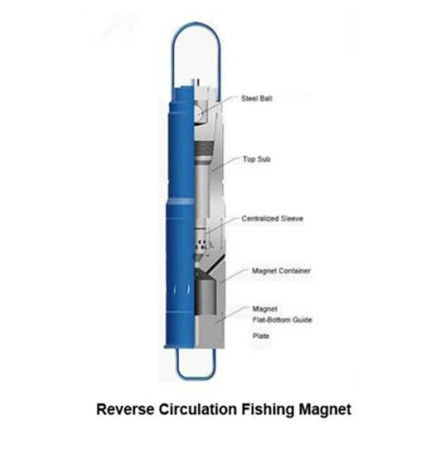

Reverse Circulation Fishing Magnet Assembly consists of lifting bail, top sub, housing, magnet element, pole plate, standard flush guide, and steel ball. When using we can select appropriate guide.

Operation:
Run the fishing magnet in a place which approximate 40 inches from the bottom of hole. Circulate to wash the fish,reduce circulation and lower the fishing magnet to the bottom of hole to attach the fish. Slowly rotate to ensure positive contact. Lift up 10 to 20 inches, drop the steel ball into the fishing string, and pump the steel ball into ball seat. Rotate and circulate for a moment, discontinue circulation and lift the fishing magnet from the hole.

Optional Accessories:

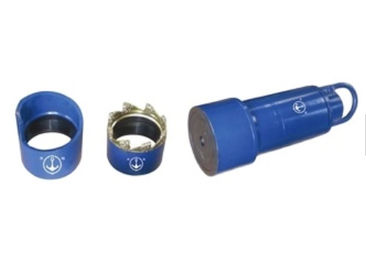

A flush guide is standard. Lipped guides and mill guides are also available.

Technical Specifications of TR Oilfield Fishing Magnet

Design Features:

With some of advantages such as simply structure, easy to operate, reliable performance, small size and light weight, it is a equipped with permanent magnet iron which can attract small objects such as teeth wheel, palm, tong teeth and tool so that small objects in down hole are fished and the well bottom is cleaned up.
