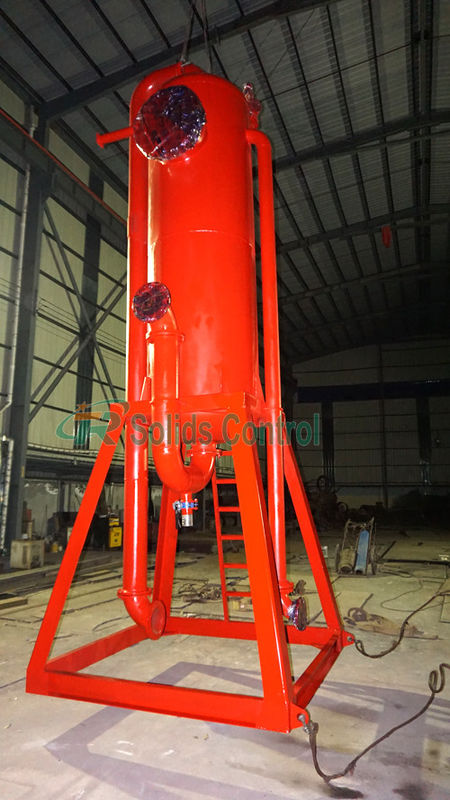

Drilling Fluid Vertical 240m3/H Mud Gas Separator

Drilling Fluid Vertical 240m3/H Mud Gas Separator
Drilling Fluid Vertical 240m3/H Mud Gas Separator
video play

Large Image :  Drilling Fluid Vertical 240m3/H Mud Gas Separator

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRZYQ1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days after receiving deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 300 Sets/Month
Detailed Product Description
Capacity: 240m3/h Main Body Diameter: 1000mm
Inlet Pipe: DN125mm Output Pipe: DN200mm
Gas Discharge Pipe: DN200mm Weight: 2235kg
Dimension: 2000*2000*5860mm Application: Oil & Gas Drilling, HDD
High Light:

240m3/h Mud Gas Separator

,

Vertical Mud Gas Separator

Vertical Large Capacity Mud Gas Separator / Mud Gas Filter Separator


Main Product Introduction



Mud gas separatpr is the first stage safety equipment in the modern drilling operations, designed to provide effective separation of the mud and gas circulated from the well by venting the gas and returning the mud to the tank.It is mainly used to remove the big bubbles with the diameter of ≥Φ3mm, most of which are the expanded gas filled in the drilling fluids.



The gas invasion drilling fluid enters the separator from the inlet of the separator, and the surface area of the drilling fluid is enlarged and exposed after impacting with the impact plate. The large bubble is broken and separated from the drilling fluid. After the first degassing of the drilling fluid, the surface area of the three layers of baffles is increased again, and the remaining bubbles are broken and separated again. The free gas is discharged through the gas outlet of the top of the tank and is brought to the safety place.



Main Advantages of TRZYQ Mud Gas Separator

  1. Skid-Mounted.
  2. Adopting bottom-sealing structure.
  3. Separated free gas from drilling fluids, including toxic gases such as hydrogen sulfide.
  4. Reducing hazardous gas threat: separated free gas is discharged by vent lines to a safe place for combustion.
  5. Mainly used to clear away big bubbles of Φ3-Φ25mm.
  6. Anti-corrosion epoxy coating to ensure long service life.
  7. Simple structure,large disposal capacity,high degassing efficiency,convenient transportation/installation.

Technical Data of TRZYQ Mud Gas Separator


Model TRZYQ800 TRZYQ1000 TRZYQ1200
Capacity 180 m³/h 240 m³/h 320 m³/h
Main Body Diameter 800mm 1000mm 1200mm
Inlet Pipe DN100mm DN125mm DN125mm
Output Pipe DN150mm DN200mm DN250mm
Gas Discharge Pipe DN200mm DN200mm DN200mm
Weight 1750kg 2235kg 2600kg
Dimension 1900*1900*5700mm 2000*2000*5860mm 2200*2200*6634mm


Drilling Fluid Vertical 240m3/H Mud Gas Separator 0



TR Solids Control is a professional API certificate manufacturer of mud gas separator and other solids control equipments. For more information, welcome to contact with us, we will try our best to serve you.



Our products Including below three series with full model types:

Solid Control Equipment: shale shaker, mud cleaner, decanter centrifuge etc.
Drilling Bit: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts: manual tong,elevator,slips,stabilizer;
Workover Fishing Tools: fishing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
