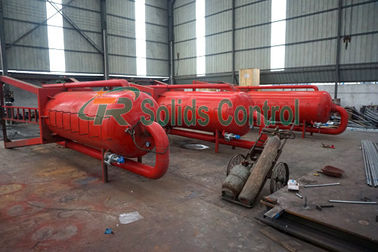

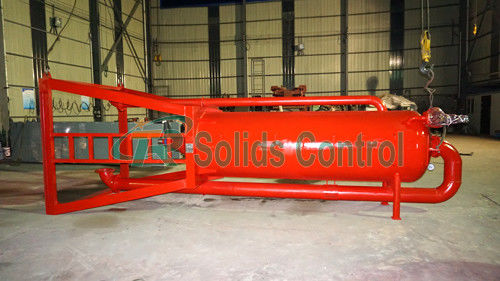

Oil Gas Drilling Fluid Solids Control H2S Poor Boy Degasser

Oil Gas Drilling Fluid Solids Control H2S Poor Boy Degasser
Oil Gas Drilling Fluid Solids Control H2S Poor Boy Degasser
video play

Large Image :  Oil Gas Drilling Fluid Solids Control H2S Poor Boy Degasser

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRZYQ800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days after receiving deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 300 Sets/Month
Detailed Product Description
Capacity: 180m3/h Body Diameter: 800mm
Inlet Pipe: DN100mm Output Pipe: DN150mm
Gas Discharge Pipe: DN200mm Weight: 1750kg
Dimension: 1900*1900*5700mm Application: Oil & Gas Drilling, HDD
High Light:

H2S Poor Boy Degasser

,

Drilling Poor Boy Degasser

Oil Gas Drilling Fluid Solids Control H2S Mud Gas Separator

Product Overview



TRZYQ series mud gas separator combined with the flare ignition device can be used to ensure drilling process smoothly. According to the pressure, our mud gas separator can be divided into normal pressure type and pressure auto-control type. Mud gas separator is a field proven and extremely reliable safety equipment designed for today’s challenging drilling operations.



The gas invasion drilling fluid enters the separator from the inlet of the separator, and the surface area of the drilling fluid is enlarged and exposed after impacting with the impact plate. The large bubble is broken and separated from the drilling fluid. After the first degassing of the drilling fluid, the surface area of the three layers of baffles is increased again, and the remaining bubbles are broken and separated again. The free gas is discharged through the gas outlet of the top of the tank and is brought to the safety place.


Design Features of TRZYQ Mud Gas Separator

  1. Efficient degassing performance.
  2. Fail-safe gas delivery can be controlled by a back-pressure manifold valve in the flare line.
  3. Skid-Mounted and Trailer Transportable. Simplifying transport, spotting and installation.
  4. Versatile Configuration. Flow line adjustments can be raised or lowered to minimize piping.
  5. Reduces Hazardous Gas Threat. Separated gas is carried by discharge lines to safe area for combustion.
  6. Separates free gas accumulations especially toxic gases from drilling mud system.

Main Parameters of TRZYQ Mud Gas Separator


Model TRZYQ800 TRZYQ1000 TRZYQ1200
Capacity 180 m³/h 240 m³/h 320 m³/h
Main Body Diameter 800mm 1000mm 1200mm
Inlet Pipe DN100mm DN125mm DN125mm
Output Pipe DN150mm DN200mm DN250mm
Gas Discharge Pipe DN200mm DN200mm DN200mm
Weight 1750kg 2235kg 2600kg
Dimension 1900*1900*5700mm 2000*2000*5860mm 2200*2200*6634mm


Oil Gas Drilling Fluid Solids Control H2S Poor Boy Degasser 0



Our principle is to offer high quality products at competitive price to benefit our customers and the industry in the long run. Our products enjoy high reputation at home and abroad. We have successfully established a stable and increased market share and we are constantly making efforts to actively expand our sales network.



Any question or interest about our oilfield asme solid gas separator / gas buster / mud gas separator, please don't hesitate to contact with us. It's our honor to help and support your business.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
