Product Details:
Payment & Shipping Terms:
|
| OD: | 94-134mm | ID: | 44-62 Mm |
|---|---|---|---|
| Connection Thread: | 2-7/8EU | Working Pressure: | 70Mpa |
| Length: | 419-529 Mm | Diameter Of The Ball: | 50-65 Mm |
| Processing Type: | Casting, Forging | Material: | Carbon Steel |
| High Light: | Downhole Oilfield Fishing Tools,API Oilfield Fishing Tools |
||

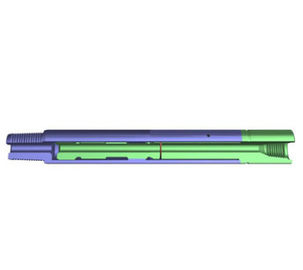

API Oilfield Fishing Tools / Downhole Tools Type AJ Safety Joint
Product Introduction
The safety joint type AJ is an essential safety tool for connecting the pipes in the well. It is used for drilling, fishing, tubing, washover and test operation. Engineered to withstand internal and external pressure, it also features in coarse threads that resist wedging or loosening of the tool during operation. The torque may be transmitted in either left-or right-hand direction.

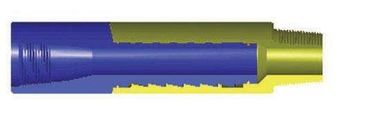

H type safety joint, which is installed on the position required for subsurface drill stem and can bear in fishing operation all kinds of loads for pulling or pressing and used to transmit torque,is a subsurface safety equipment.In down hole operation,in case of being needed,the safety joint is easy to be discharged off so as to take out the drill stem above it. It is easy to butt the safety joint to go on fishing operation when running in hole again.
Main Technical Parameters and Specs:
OD Range: 3-3/4" ~8"
Tool joint connection: API
Tensile yield strength (Lbf): 453,000 ~ 1,236,500
Torsion yield strength (Lbf): 18,710~153,940
Max. Tensile Load (Lb-ftb): 301,200 ~ 820,600
Max. Working Torque (Lbf-ftb): 7,480~61,000
AJ Type Specification
| Model | OD mm(inch) | ID mm(inch) | Conn. |
| AJ-C89 | 89 (3-1/2) | 44(1 47/64) | NC26 |
| AJ-C95 | 95(3-3/4) | 44(1 47/64) | NC26 |
| AJ-C105 | 105(4-1/8) | 50.8(2) | NC31 |
| AJ-C121 | 121(4-3/4) | 62(2 7/16) | NC38 |
| AJ-C127 | 127(5) | 62(2 7/16) | NC38 |
| AJ-C159 | 159(6-1/4) | 82(3 1/4) | NC50 |
| AJ-C165 | 165(6-1/2) | 82(3 1/4) | NC50 |
| AJ-C178 | 178(7) | 82(3 1/4) | NC50 |
| AJ-C203 | 203(8) | 82(3 1/4) | 6-5/8REG |
| AJ-C229 | 229(9) | 88.9(3 1/2) | 7-5/8REG |
H Type Specification
| Model | OD mm(inch) | Bore ID mm(inch) | Conn. |
| HJ105 | 105(4 1/8) | 38.1(1 1/2) | NC31(NC31LH) |
| HJ121 | 121(4 3/4) | 50.8(2) | NC38(NC38LH) |
| HJ159 | 159(6 1/4) | 57.2(2 1/4) | NC50 |
| HJ165 | 165(6 1/2) | 70(2 3/4) | NC50(NC50LH) |
| HJ168 | 168(6 5/8) | 70(2 3/4) | NC50 |
| HJ168 | 168(6 5/8) | 71(2 13/16) | NC50 |
| HJ178 | 178(7) | 70(2 3/4) | NC50 |
| HJ203 | 203(8) | 80(3 5/32) | 6-5/8REG |
Packaging & Delivery
Packaging Details
oilfield drilling safety joint will be packed in wooden case or as request
Port: Tianjin port, Shanghai Port, Qingdao Port
Lead Time: Within 3-5 work days after receive the payment
Our principle is to offer high quality products at competitive price to benefit our customers and the industry in the long run. Our products enjoy high reputation at home and abroad. We have successfully established a stable and increased market share and we are constantly making efforts to actively expand our sales network.
With continuous diligence and improvement we have established a broad working relationship with our clients who are spread across the globe in places like Middle East, Europe, North America, South America, Asia, Australia and Africa.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
