Product Details:
Payment & Shipping Terms:
|
| OD: | 94-134mm | ID: | 44-62 Mm |
|---|---|---|---|
| Connection Thread: | 2-7/8EU | Length: | 419-529 Mm |
| Working Pressure: | 70Mpa | Diameter Of The Ball: | 50-65 Mm |
| Processing Type: | Casting, Forging | Material: | Carbon Steel |
| High Light: | Safety Joint Drill Spare Parts,70Mpa Drill Spare Parts |
||
Type AJ and H Oilfield Fishing Tools Safety Joint for Oil Well Drilling
Product Introduction

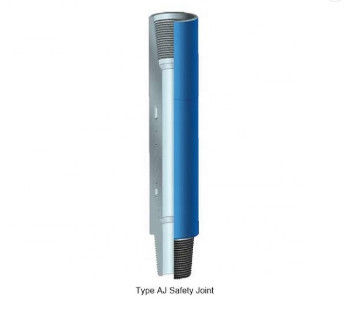

AJ safety joint is one kind of safety back off tool which is connecting with drilling string and all kinds of working string in downhole operation. When sticking in well and need back off, it is easy to back off from connection thread of its body. Pull out drill pipe and tubing above its pin joint. It is easy and reliable to back off or make up again in downhole.

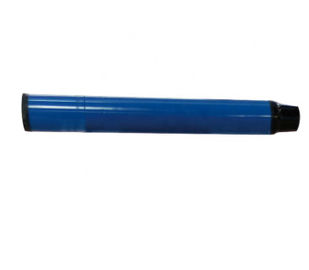

H type safety joint, which is installed on the position required for subsurface drill stem and can bear in fishing operation all kinds of loads for pulling or pressing and used to transmit torque,is a subsurface safety equipment.In down hole operation,in case of being needed,the safety joint is easy to be discharged off so as to take out the drill stem above it. It is easy to butt the safety joint to go on fishing operation when running in hole again.
Packaging & Delivery
Packaging Details
oilfield drilling safety joint will be packed in wooden case or as request
Port: Tianjin port, Shanghai Port, Qingdao Port
Lead Time: Within 3-5 work days after receive the payment
Main Technical Specifications:
OD Range: 3-3/4" ~8"
Tool joint connection: API
Tensile yield strength (Lbf): 453,000 ~ 1,236,500
Torsion yield strength (Lbf): 18,710~153,940
Max. Tensile Load (Lb-ftb): 301,200 ~ 820,600
Max. Working Torque (Lbf-ftb): 7,480~61,000
AJ Type Specification
| Model | OD mm(inch) | ID mm(inch) | Conn. |
| AJ-C89 | 89 (3-1/2) | 44(1 47/64) | NC26 |
| AJ-C95 | 95(3-3/4) | 44(1 47/64) | NC26 |
| AJ-C105 | 105(4-1/8) | 50.8(2) | NC31 |
| AJ-C121 | 121(4-3/4) | 62(2 7/16) | NC38 |
| AJ-C127 | 127(5) | 62(2 7/16) | NC38 |
| AJ-C159 | 159(6-1/4) | 82(3 1/4) | NC50 |
| AJ-C165 | 165(6-1/2) | 82(3 1/4) | NC50 |
| AJ-C178 | 178(7) | 82(3 1/4) | NC50 |
| AJ-C203 | 203(8) | 82(3 1/4) | 6-5/8REG |
| AJ-C229 | 229(9) | 88.9(3 1/2) | 7-5/8REG |
H Type Specification
| Model | OD mm(inch) | Bore ID mm(inch) | Conn. |
| HJ105 | 105(4 1/8) | 38.1(1 1/2) | NC31(NC31LH) |
| HJ121 | 121(4 3/4) | 50.8(2) | NC38(NC38LH) |
| HJ159 | 159(6 1/4) | 57.2(2 1/4) | NC50 |
| HJ165 | 165(6 1/2) | 70(2 3/4) | NC50(NC50LH) |
| HJ168 | 168(6 5/8) | 70(2 3/4) | NC50 |
| HJ168 | 168(6 5/8) | 71(2 13/16) | NC50 |
| HJ178 | 178(7) | 70(2 3/4) | NC50 |
| HJ203 | 203(8) | 80(3 5/32) | 6-5/8REG |
Our Service
1. We will keep track of each customer to get the feedback of product quality and service. And we will make an amendment according to your feedback.
2. If the product size is wrong, we will send the right one freely.
3. We guarantee the high quality. Please feel free to contact us if you found any damage. We will solve the problems ASAP.
4. We can provide product repair services.
The optimaler price, the best quality, the fastest speed, the best service.Your every piece of advice to us we will be very seriously treatment. If you have any suggestion to us, please surely tell us by mail in a timely manner You are not just a visitor, but our partner in common progress.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
