Product Details:
Payment & Shipping Terms:
|
| OD: | 94-134mm | ID: | 44-62 Mm |
|---|---|---|---|
| Connection Thread: | 2-7/8EU | Working Pressure: | 70Mpa |
| Length: | 419-529 Mm | Diameter Of The Ball: | 50-65 Mm |
| Processing Type: | Casting, Forging | Material: | Carbon Steel |
| Highlight: | 70Mpa Drill Spare Parts,Oilfield Drill Spare Parts |
||

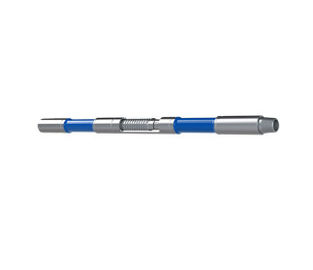

API Standard Oilfield Oil Well Fishing Tools H Type Safety Joint
Product Overview
AJ Type Safety Joint: AJ safety joint is one kind of safety back off tool which is connecting with drilling string and all kinds of working string in downhole operation. When sticking in well and need back off, it is easy to back off from connection thread of its body. Pull out drill pipe and tubing above its pin joint. It is easy and reliable to back off or make up again in downhole.
H Type Safety Joint: H safety joint is one kind of downhole safety equipment for fishing,washover and testing.which is connected needed parts in downhole. It could bear all kinds of pulling and pushing loading and deliver torque.
Main Technical Parameters:
OD Range: 3-3/4" ~8"
Tool joint connection: API
Tensile yield strength (Lbf): 453,000 ~ 1,236,500
Torsion yield strength (Lbf): 18,710~153,940
Max. Tensile Load (Lb-ftb): 301,200 ~ 820,600
Max. Working Torque (Lbf-ftb): 7,480~61,000
AJ Type Specification
| Model | OD mm(inch) | ID mm(inch) | Conn. |
| AJ-C89 | 89 (3-1/2) | 44(1 47/64) | NC26 |
| AJ-C95 | 95(3-3/4) | 44(1 47/64) | NC26 |
| AJ-C105 | 105(4-1/8) | 50.8(2) | NC31 |
| AJ-C121 | 121(4-3/4) | 62(2 7/16) | NC38 |
| AJ-C127 | 127(5) | 62(2 7/16) | NC38 |
| AJ-C159 | 159(6-1/4) | 82(3 1/4) | NC50 |
| AJ-C165 | 165(6-1/2) | 82(3 1/4) | NC50 |
| AJ-C178 | 178(7) | 82(3 1/4) | NC50 |
| AJ-C203 | 203(8) | 82(3 1/4) | 6-5/8REG |
| AJ-C229 | 229(9) | 88.9(3 1/2) | 7-5/8REG |
H Type Specification
| Model | OD mm(inch) | Bore ID mm(inch) | Conn. |
| HJ105 | 105(4 1/8) | 38.1(1 1/2) | NC31(NC31LH) |
| HJ121 | 121(4 3/4) | 50.8(2) | NC38(NC38LH) |
| HJ159 | 159(6 1/4) | 57.2(2 1/4) | NC50 |
| HJ165 | 165(6 1/2) | 70(2 3/4) | NC50(NC50LH) |
| HJ168 | 168(6 5/8) | 70(2 3/4) | NC50 |
| HJ168 | 168(6 5/8) | 71(2 13/16) | NC50 |
| HJ178 | 178(7) | 70(2 3/4) | NC50 |
| HJ203 | 203(8) | 80(3 5/32) | 6-5/8REG |
TR Solids Control is a professional supplier of various oilfield equipment, including oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). We have become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
