1000mm Mud Gas Fluid Treatment Oilfield Separator

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

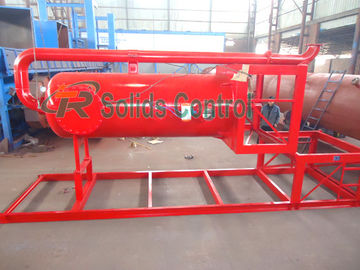

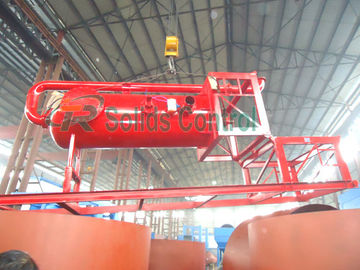

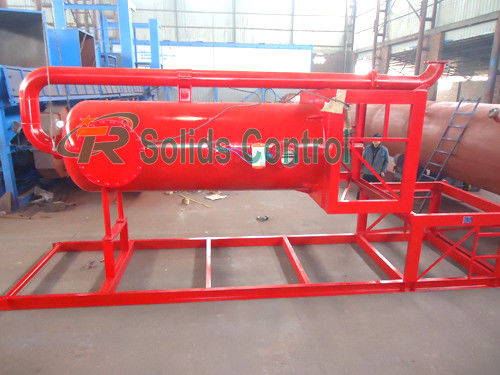

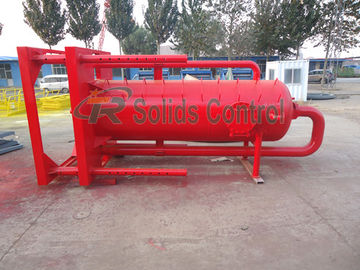

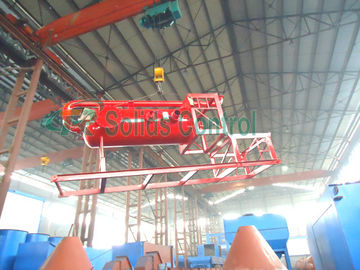

1000mm Mud Gas Fluid Treatment Oilfield Separator

1000mm Mud Gas Fluid Treatment Oilfield Separator
1000mm Mud Gas Fluid Treatment Oilfield Separator
video play

Large Image :  1000mm Mud Gas Fluid Treatment Oilfield Separator

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRZYQ1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days after receiving deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 300 Sets/Month
Detailed Product Description
Capacity: 240m3/h Main Body Diameter: 1000mm
Inlet Pipe: DN125mm Output Pipe: DN200mm
Gas Discharge Pipe: DN200mm Weight: 2235kg
Dimension: 2000*2000*5860mm Application: Oil & Gas Drilling, HDD
High Light:

Fluid Treatment oilfield separator

,

1000mm oilfield separator

Oilfield Well Drilling Fluid Treatment Equipment Mud Gas Separator

Main Introduction



Mud gas separator is ideal for use where drilling is likely to encounter large volumes of gas intruded, sour gas or when an operator is drilling with an underbalanced mud column. TRZYQ series mud gas separator is professional equipment to treat the gas invading mud. When the drilling mud has gas invading, the proportion of its weight and viscosity has a greater deviation not to meet the requirements of drilling. The serious situation is that would cause well kick, and even blowout accident occurred, if not to treat it timely.



Mud/Gas Separator is a piece of special equipment for degassing gas-invaded mud in the first grade. It is mainly used to remove big bubbles above φ3mm in diameter and these bubbles refer to expanded gases in the fluids that fill in some parts of well annulus. Well kick even spilling out to the rotary table will easily occur if they are not removed.

Main Advantages of TRZYQ Mud Gas Separator

  1. Separated free gas from drilling fluids, including toxic gases such as hydrogen sulfide.
  2. Mainly used to clear away big bubbles of Φ3-Φ25mm.
  3. Anti-corrosion epoxy coating to ensure long service life.
  4. Reducing hazardous gas threat: separated free gas is discharged by vent lines to a safe place for combustion.
  5. Adopting bottom-sealing structure. 6.Skid-Mounted 7.Simple structure,large disposal capacity,high degassing efficiency,convenient transportation/installation.

Main Parameters of TRZYQ Series Mud Gas Separator


Model TRZYQ800 TRZYQ1000 TRZYQ1200
Capacity 180 m³/h 240 m³/h 320 m³/h
Main Body Diameter 800mm 1000mm 1200mm
Inlet Pipe DN100mm DN125mm DN125mm
Output Pipe DN150mm DN200mm DN250mm
Gas Discharge Pipe DN200mm DN200mm DN200mm
Weight 1750kg 2235kg 2600kg
Dimension 1900*1900*5700mm 2000*2000*5860mm 2200*2200*6634mm


1000mm Mud Gas Fluid Treatment Oilfield Separator 0



Why choose us?
1. Own factories in China mainland.
2. Engaged in the solid control equipment for over 10 years.
3. Achieve patents for intellectual property protection.
4. QUALITY SESTEM to make sure the superior high quality.
5. Large product series for one-stop service.
6. Consulting, suggesting, help find perfect solution.



TR Solids Control is a professional API certificate manufacturer of mud gas separator and other solids control equipments. For more information, welcome to contact with us, we will try our best to serve you.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
