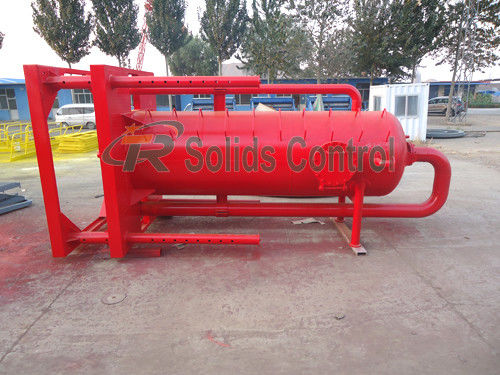

Solids Control Drilling Fluid 1000mm Mud Gas Separator

Solids Control Drilling Fluid 1000mm Mud Gas Separator
Solids Control Drilling Fluid 1000mm Mud Gas Separator
video play

Large Image :  Solids Control Drilling Fluid 1000mm Mud Gas Separator

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRZYQ1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days after receiving deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 300 Sets/Month
Detailed Product Description
Capacity: 240m3/h Main Body Diameter: 1000mm
Inlet Pipe: DN125mm Output Pipe: DN200mm
Gas Discharge Pipe: DN200mm Weight: 2235kg
Dimension: 2000*2000*5860mm Application: Oil & Gas Drilling, HDD
High Light:

1000mm Mud Gas Separator

,

Solids Control Mud Gas Separator

Oilfield Safety Equipment Mud Gas Separator for Drilling Operation

Main Introduction



Mud/Gas Separator is a piece of special equipment for degassing gas-invaded mud in the first grade. It is mainly used to remove big bubbles above φ3mm in diameter and these bubbles refer to expanded gases in the fluids that fill in some parts of well annulus. Well kick even spilling out to the rotary table will easily occur if they are not removed.

Drilling fluid with gas goes into the separator and drops along the inner wall. With collision to increase the contact area, it flows downward and becomes a turbulent state which makes gas separate from mud. The free gas goes through the top of vessel and is discharged from the gas outlet. The length of gas output pipe can be determined at the spot. The drilling fluid without gas flows into the following solids control equipment.



Mud Gas Separator or Poor boy degasser used in separating fluids and gas while drilling. TR provides ZYQ Mud Gas Separator. Low price and high quality,swift delivery,professional design,circumspect service.

Design Benefits of TRZYQ Mud Gas Separator

  1. Mainly used to clear away big bubbles of Φ3-Φ25mm.
  2. Anti-corrosion epoxy coating to ensure long service life.
  3. Separated free gas from drilling fluids, including toxic gases such as hydrogen sulfide.
  4. Reducing hazardous gas threat: separated free gas is discharged by vent lines to a safe place for combustion.
  5. Adopting bottom-sealing structure. 6.Skid-Mounted 7.Simple structure,large disposal capacity,high degassing efficiency,convenient transportation/installation.

Main Parameters of TRZYQ Series Mud Gas Separator


Model TRZYQ800 TRZYQ1000 TRZYQ1200
Capacity 180 m³/h 240 m³/h 320 m³/h
Main Body Diameter 800mm 1000mm 1200mm
Inlet Pipe DN100mm DN125mm DN125mm
Output Pipe DN150mm DN200mm DN250mm
Gas Discharge Pipe DN200mm DN200mm DN200mm
Weight 1750kg 2235kg 2600kg
Dimension 1900*1900*5700mm 2000*2000*5860mm 2200*2200*6634mm


Solids Control Drilling Fluid 1000mm Mud Gas Separator 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited is one of the exporting windows of China Petroleum Machinery. Our company integrates the R&D, machinery processing and technical service of petroleum machinery products. We aim at providing clients with satisfying products and service to benefit both clients and employees. Being master in petroleum machinery, Supplying high quality products to clients, Being honesty to everyone.


Any question or interest about our oilfield asme solid gas separator / gas buster / mud gas separator, please don't hesitate to contact with us. It's our honor to help and support your business.

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
