Product Details:
Payment & Shipping Terms:
|
| Certification: | API, ISO | Size: | 7-1/16"-30" |
|---|---|---|---|
| Pressure: | 500psi To 20000psi | Temperature: | T75/T20/T0 |
| Model: | Annular,single,double | Processing Type: | Forging, Casting |
| Material: | Carbon Steel | Usage: | Well Control System |
| High Light: | Hydraulic BOP Control Unit,API 16A BOP Control Unit |
||

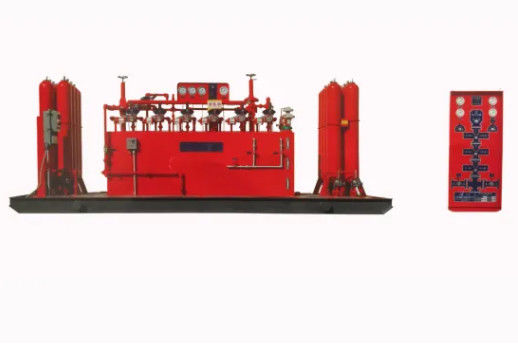

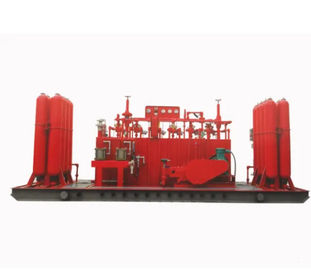

API 16A Oilfield BOP Control Unit , Hydraulic Control Unit
Product Overview
BOP Control Unit (Hereinafter referred to as hydraulic control unit) is a necessary equipment for controlling wellhead BOP,Hydraulic choke & kill valve, and drilling & workover operation.
Two types of BOP Control Units are offered by us: One is pneumatic control hydraulic device .The hydraulic control device can be remote controlled with driller's console, to achieve the purpose of switching the BOP, which is commonly used in drilling operation; The other one is manual operation, which is suitable for drilling or work-over operation.
Main Technical Specifications:
Nominal working pressure: 21 Mpa /3000 psi
Regulation range:0~14 Mpa / 0~2000 psi
Nitrogen charging pressure of accumulator:7±0.7 Mpa /1000±100psi
Setting range of pressure controller:18.9~21 Mpa / 2700~3000psi
Setting range of liquid-gas switch:18.9~21 Mpa/ 2700~3000psi
Air supply pressure: 0.65~0.8 Mpa / 93~115psi
power:380±19V / 50Hz
Specifications of Our Oilfield Drilling Ram BOP
| SIZE (MM) | SIZE (IN) | SIZE (MM) | SIZE (IN) |
| FH18-21 | 7-1/16” x 3,000 | FHZ18-70 | 7-1/16’’ x 10,000 |
| FH18-35 | 7-1/16” x 5,000 | FHZ18-70/105 | 7-1/16’’ x 10,000 / 15,000 |
| FH18-35/70 | 7-1/16” x 5,000 / 10,000 | FHZ28-35 | 11” x 5,000 |
| FH23-21 | 9” x 3,000 | FHZ28-70 | 11” x 10,000 |
| FH28-35 | 11” x 5,000 | FHZ28-70/105 | 11” x 10,000 / 15,000 |
| FH28-35/70 | 11” x 5,000 / 10,000 | FHZ28-105 | 11’’ x 15,000 |
| FH28-70 | 11” x 10,000 | FHZ28-105/140 | 11’’ x 15,000 / 20,000 |
| FH28-70/105 | 11” x 10,000 / 15,000 | FHZ35-21 | 13-5/8” x 3,000 |
| FH35-21 | 13-5/8” x 3,000 | FHZ53-21 | 20-3/4’’ x 3,000 |
| FH35-35 | 13-5/8” x 5,000 | FHZ54-14 | 21-1/4” x 2,000 |
| FH35-35/70 | 13-5/8” x 5,000 / 10,000 | FHZ75-3.5 | 29-1/2’’ x 500 |
| FH35-70 | 13-5/8” x 10,000 | ||
| FH35-70/105 | 13-5/8” x 10,000 / 15,000 |
TR Solids Control is a professional supplier of various oilfield equipment, including oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). We have become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
