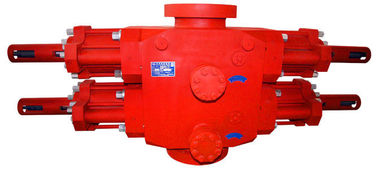

Oilfield Drilling Cameron / Shaffer Type Manual Single Ram BOP

Cameron / Shaffer Type Single Ram BOP Manual for Oilfield Drilling

Product Overview

BOP is shut in the well for oil testing, workover, well completion and operating process to prevent the blowout accident, totally enclosed and semi-closed two functions into one, has a simple structure, easy to operate, resistant to high-pressure characteristics is used to prevent blowouts safety oilfield sealing wellhead.

The double ram BOP can be equipped with different types of rams, such as pipe ram, blind ram, shear ram or variable diameter ram, to meet different applications. The ram seal is a float type, which will decrease the resisitance and abrasion of the rubber core.The service life is greatly prolonged. Its anti-H2S performance conforms to NACE MR 0175 standard.

Hydraulic ram BOP is the important component of well drillig control equipment. It has the features: rapid open, labor-saving operation, easy maintenance, use for safe and so on. Ram BOP is mainly composed of housing, side gate, hydro-cylinder, cylinder cap, piston, piston rod, lock shaft, sealing parts, ram, etc. Oil well's sealing or opening is achieved by moving ram, which is driven by piston rod and piston with hydraulic force.

Key Benefits of TR Drilling Ram BOP:

1. A latched head for fast, easy access to the seal element and wear seals.
2. Upper housing and the body have two connection forms as connection by bolts and connection by claw chuck.
3. Inner sleeve is bolted to the body that eliminates the difficulties in repair, and it is field replaceable.
4. Replacement wear place that eliminates metal contact between the seal element inserts and the BOP head.
5. Used in conjunction whit hydraulic control system,the annular BOP seals off the annulus of different sizes when pipes are in use in the hole.
6. Annular BOP with tapered rubber is composed of seven parts as upper housing,wear plate,body,piston,tapered rubber,anti-dust ring and supporting cylinder.
7. The dynamic seal of annular BOP adopts the sealing ring of lip structure,which reduces the wearing of sealing ring to the maximum,and the sealing is reliable;the rubber is not easy to fold back,and there is the effect of funnel;and the well pressure has the function of assisting sealing,etc.
8. Seal element molded with two different styles of inserts to reduce closing volume and increase closing cycles.
9. A piston design that provides complete balance more reliable operation and ease of assembly.
10. An opening chamber head hat prevents debris from falling into the chambers when replacing the seal element.

Technical Data of Our Drilling Ram BOP

TR Solids Control offers a wide range of annular and ram type BOP. Our BOPs are widely used on surface and subsea.
They are manufactured in accordance with API specifacations 16A latest edition. TR Solids Control had explored the international market and enlarged international cooperation 10 years. And we have many years of history in the petroleum equipment industry. Our main products include solid control equipment, drilling equipment, oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipe, vavle & pipe fitting and other oilfield tools.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
