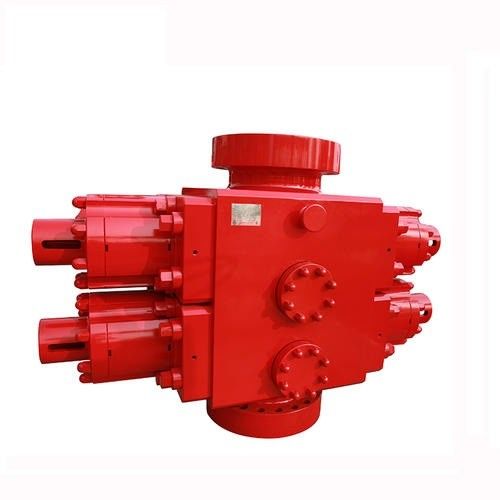

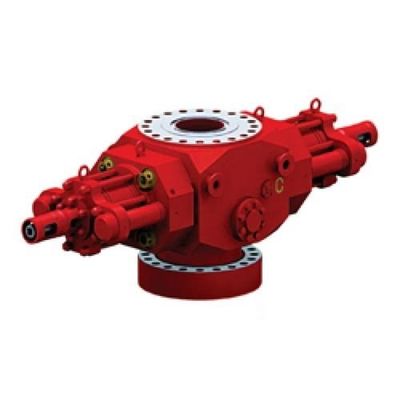

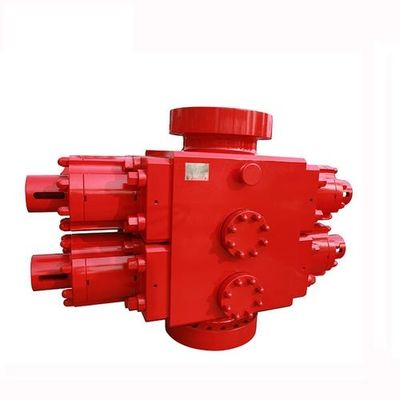

Hydraulic Ram Blowout Preventer Drill Spare Parts

Hydraulic Ram Blowout Preventer Drill Spare Parts
Hydraulic Ram Blowout Preventer Drill Spare Parts Hydraulic Ram Blowout Preventer Drill Spare Parts

Large Image :  Hydraulic Ram Blowout Preventer Drill Spare Parts

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRFPQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 Pcs Per Month
Detailed Product Description
Size: 7-1/16"-30" Pressure: 500psi To 20000psi
Temperature: T75/T20/T0 Model: Annular,single,double
Processing Type: Forging, Casting Material: Carbon Steel
Certification: API, ISO Usage: Well Control System
High Light:

Blowout Preventer Drill Spare Parts

,

Hydraulic ram preventer

Drilling Single RAM BOP / Blowout Preventer For Oil Well Control



Product Overview



Hydraulic ram preventer is an important component assembly of well control device. It is characterized by flexible switch, easy operation, safety in use and simple maintenance, etc.



The hydraulic ram BOP is mainly used in workover and drilling operations with varied technical requirements. With a BOP body,side outlet, ram body, and other pressure bearing parts crafted from defect-free forged metal, and an oval-shaped inner chamber to reduce stress concentration and improve its sealing performance, this BOP can efficientlyl prevent an oil well blowout.



The double ram BOP can be equipped with different types of rams, such as pipe ram, blind ram, shear ram or variable diameter ram, to meet different applications. The ram seal is a float type, which will decrease the resisitance and abrasion of the rubber core.The service life is greatly prolonged. Its anti-H2S performance conforms to NACE MR 0175 standard.



Design Characterstics of TR Drilling RAM BOP:

  1. Upper housing and the body have two connection forms as connection by bolts and connection by claw chuck.
  2. Used in conjunction whit hydraulic control system,the annular BOP seals off the annulus of different sizes when pipes are in use in the hole.
  3. Annular BOP with tapered rubber is composed of seven parts as upper housing,wear plate,body,piston,tapered rubber,anti-dust ring and supporting cylinder.
  4. The dynamic seal of annular BOP adopts the sealing ring of lip structure,which reduces the wearing of sealing ring to the maximum,and the sealing is reliable;the rubber is not easy to fold back,and there is the effect of funnel;and the well pressure has the function of assisting sealing,etc.
  5. Seal element molded with two different styles of inserts to reduce closing volume and increase closing cycles.
  6. Replacement wear place that eliminates metal contact between the seal element inserts and the BOP head.
  7. A piston design that provides complete balance more reliable operation and ease of assembly.

Main Parameters of Our Oilfield Drilling Ram BOP



SIZE (MM) SIZE (IN) SIZE (MM) SIZE (IN)
FH18-21 7-1/16” x 3,000 FHZ18-70 7-1/16’’ x 10,000
FH18-35 7-1/16” x 5,000 FHZ18-70/105 7-1/16’’ x 10,000 / 15,000
FH18-35/70 7-1/16” x 5,000 / 10,000 FHZ28-35 11” x 5,000
FH23-21 9” x 3,000 FHZ28-70 11” x 10,000
FH28-35 11” x 5,000 FHZ28-70/105 11” x 10,000 / 15,000
FH28-35/70 11” x 5,000 / 10,000 FHZ28-105 11’’ x 15,000
FH28-70 11” x 10,000 FHZ28-105/140 11’’ x 15,000 / 20,000
FH28-70/105 11” x 10,000 / 15,000 FHZ35-21 13-5/8” x 3,000
FH35-21 13-5/8” x 3,000 FHZ53-21 20-3/4’’ x 3,000
FH35-35 13-5/8” x 5,000 FHZ54-14 21-1/4” x 2,000
FH35-35/70 13-5/8” x 5,000 / 10,000 FHZ75-3.5 29-1/2’’ x 500
FH35-70 13-5/8” x 10,000
FH35-70/105 13-5/8” x 10,000 / 15,000



Hydraulic Ram Blowout Preventer Drill Spare Parts 0



TR Solids Control is a professional supplier of various oilfield equipment, including oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts.



And we have many years of history in the petroleum equipment industry. Our main products include solid control equipment, drilling equipment, oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipe, vavle & pipe fitting and other oilfield tools.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
