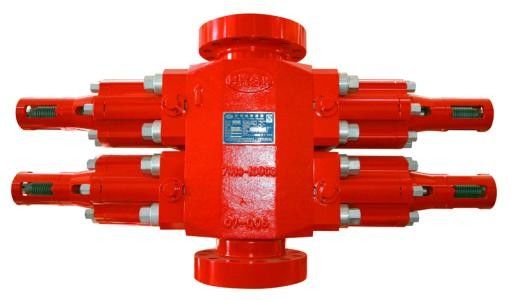

Double Ram BOP Carbon Steel Oilfield Drill Spare Parts

Double Ram BOP Carbon Steel Oilfield Drill Spare Parts
Double Ram BOP Carbon Steel Oilfield Drill Spare Parts Double Ram BOP Carbon Steel Oilfield Drill Spare Parts Double Ram BOP Carbon Steel Oilfield Drill Spare Parts

Large Image :  Double Ram BOP Carbon Steel Oilfield Drill Spare Parts

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRFPQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 Pcs Per Month
Detailed Product Description
Size: 7-1/16"-30" Pressure: 500psi To 20000psi
Temperature: T75/T20/T0 Model: Annular,single,double
Processing Type: Forging, Casting Material: Carbon Steel
Certification: API, ISO Usage: Well Control System
High Light:

Oilfield Drill Spare Parts

,

BOP Drill Spare Parts

High Standard Double Ram BOP for Oilfield Drilling Well Control



Product Overview



Ram Blowout Preventer (Cameron Style) is designed and manufactured according to API Spec 16A standard. It can be equipped with various rams. With the best quality front ram rubber, top ram rubber and flange sealing stacks, ram blowout preventer (Cameron style) can work during the extreme working condition including extremely high or low temperature and extreme chemical environment.


Hydraulic ram BOP is the important component of well drillig control equipment. It has the features: rapid open, labor-saving operation, easy maintenance, use for safe and so on. Ram BOP is mainly composed of housing, side gate, hydro-cylinder, cylinder cap, piston, piston rod, lock shaft, sealing parts, ram, etc. Oil well's sealing or opening is achieved by moving ram, which is driven by piston rod and piston with hydraulic force.



Main Advantages of TR Drilling Ram BOP:



  1. Replacement wear place that eliminates metal contact between the seal element inserts and the BOP head.
  2. A latched head for fast, easy access to the seal element and wear seals.
  3. Used in conjunction whit hydraulic control system,the annular BOP seals off the annulus of different sizes when pipes are in use in the hole.
  4. Upper housing and the body have two connection forms as connection by bolts and connection by claw chuck.
  5. Annular BOP with tapered rubber is composed of seven parts as upper housing,wear plate,body,piston,tapered rubber,anti-dust ring and supporting cylinder.
  6. The dynamic seal of annular BOP adopts the sealing ring of lip structure,which reduces the wearing of sealing ring to the maximum,and the sealing is reliable;the rubber is not easy to fold back,and there is the effect of funnel;and the well pressure has the function of assisting sealing,etc.
  7. Seal element molded with two different styles of inserts to reduce closing volume and increase closing cycles.
  8. A piston design that provides complete balance more reliable operation and ease of assembly.
  9. An opening chamber head hat prevents debris from falling into the chambers when replacing the seal element.
  10. Inner sleeve is bolted to the body that eliminates the difficulties in repair, and it is field replaceable.



Technical Specifications of Our Drilling Ram BOP



SIZE (MM) SIZE (IN) SIZE (MM) SIZE (IN)
FH18-21 7-1/16” x 3,000 FHZ18-70 7-1/16’’ x 10,000
FH18-35 7-1/16” x 5,000 FHZ18-70/105 7-1/16’’ x 10,000 / 15,000
FH18-35/70 7-1/16” x 5,000 / 10,000 FHZ28-35 11” x 5,000
FH23-21 9” x 3,000 FHZ28-70 11” x 10,000
FH28-35 11” x 5,000 FHZ28-70/105 11” x 10,000 / 15,000
FH28-35/70 11” x 5,000 / 10,000 FHZ28-105 11’’ x 15,000
FH28-70 11” x 10,000 FHZ28-105/140 11’’ x 15,000 / 20,000
FH28-70/105 11” x 10,000 / 15,000 FHZ35-21 13-5/8” x 3,000
FH35-21 13-5/8” x 3,000 FHZ53-21 20-3/4’’ x 3,000
FH35-35 13-5/8” x 5,000 FHZ54-14 21-1/4” x 2,000
FH35-35/70 13-5/8” x 5,000 / 10,000 FHZ75-3.5 29-1/2’’ x 500
FH35-70 13-5/8” x 10,000
FH35-70/105 13-5/8” x 10,000 / 15,000



Double Ram BOP Carbon Steel Oilfield Drill Spare Parts 0



TR Solids Control had explored the international market and enlarged international cooperation 10 years. Due to the competitive price, good quality and excellent service, our products are sold to America,Canada,Brazil,Columbia, Venezuela,India,Iran,UAE,Russia ,Kazakhastan,Italy,Hungary ,Australia,Syria,Egypt ,etc .and get good reputation from our overseaclients .



And we have many years of history in the petroleum equipment industry. Our main products include solid control equipment, drilling equipment, oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipe, vavle & pipe fitting and other oilfield tools.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
