Well Control API 16A Double Ram BOP Drill Spare Parts

Well Control API 16A Double Ram BOP Drill Spare Parts
Well Control API 16A Double Ram BOP Drill Spare Parts Well Control API 16A Double Ram BOP Drill Spare Parts

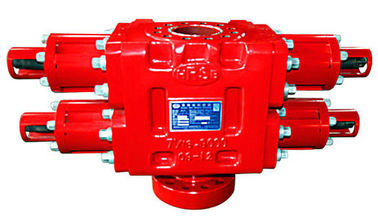

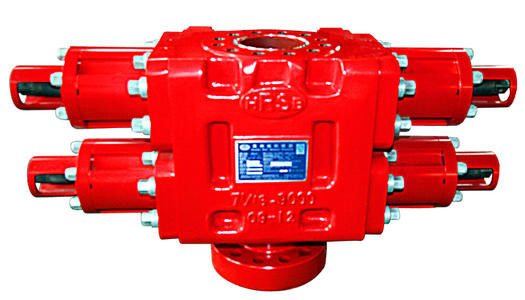

Large Image :  Well Control API 16A Double Ram BOP Drill Spare Parts

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRFPQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 Pcs Per Month
Detailed Product Description
Size: 7-1/16"-30" Pressure: 500psi To 20000psi
Temperature: T75/T20/T0 Model: Annular,single,double
Processing Type: Forging, Casting Material: Carbon Steel
Certification: API, ISO Usage: Well Control System
High Light:

API 16A Drill Spare Parts


BOP Drill Spare Parts

API 16A Shaffer and Cameron Double Ram BOP for Oilfield


Product Overview


Hydraulic ram preventer is an important component assembly of well control device. It is characterized by flexible switch, easy operation, safety in use and simple maintenance, etc.

For double-faced ram, both faces of the ram are symmetrical. For different sizes of drilling tools, only rubber seal semi-ring and ram briquetting need to be replaced, and other parts can be used interchangeably; single-faced ram is not reversible; shear ram can cut off wellhead drilling tools and fully seal wellhead; variable ram is used within certain limits to seal different sizes of drilling tools and annular tubes.

Hydraulic ram BOP is the important component of well drillig control equipment. It has the features: rapid open, labor-saving operation, easy maintenance, use for safe and so on. Ram BOP is mainly composed of housing, side gate, hydro-cylinder, cylinder cap, piston, piston rod, lock shaft, sealing parts, ram, etc. Oil well's sealing or opening is achieved by moving ram, which is driven by piston rod and piston with hydraulic force.


Main Characterstics of TR Drilling BOP:


1. Used in conjunction whit hydraulic control system,the annular BOP seals off the annulus of different sizes when pipes are in use in the hole.
2. Upper housing and the body have two connection forms as connection by bolts and connection by claw chuck.
3. Annular BOP with tapered rubber is composed of seven parts as upper housing,wear plate,body,piston,tapered rubber,anti-dust ring and supporting cylinder.
4. The dynamic seal of annular BOP adopts the sealing ring of lip structure,which reduces the wearing of sealing ring to the maximum,and the sealing is reliable;the rubber is not easy to fold back,and there is the effect of funnel;and the well pressure has the function of assisting sealing,etc.
5. Seal element molded with two different styles of inserts to reduce closing volume and increase closing cycles.
6. Replacement wear place that eliminates metal contact between the seal element inserts and the BOP head.
7. A piston design that provides complete balance more reliable operation and ease of assembly.
8. A latched head for fast, easy access to the seal element and wear seals.
9. An opening chamber head hat prevents debris from falling into the chambers when replacing the seal element.
10. Inner sleeve is bolted to the body that eliminates the difficulties in repair, and it is field replaceable.


Technical Parameters of Our Oilfield Drilling Ram BOP


FH18-21 7-1/16” x 3,000 FHZ18-70 7-1/16’’ x 10,000
FH18-35 7-1/16” x 5,000 FHZ18-70/105 7-1/16’’ x 10,000 / 15,000
FH18-35/70 7-1/16” x 5,000 / 10,000 FHZ28-35 11” x 5,000
FH23-21 9” x 3,000 FHZ28-70 11” x 10,000
FH28-35 11” x 5,000 FHZ28-70/105 11” x 10,000 / 15,000
FH28-35/70 11” x 5,000 / 10,000 FHZ28-105 11’’ x 15,000
FH28-70 11” x 10,000 FHZ28-105/140 11’’ x 15,000 / 20,000
FH28-70/105 11” x 10,000 / 15,000 FHZ35-21 13-5/8” x 3,000
FH35-21 13-5/8” x 3,000 FHZ53-21 20-3/4’’ x 3,000
FH35-35 13-5/8” x 5,000 FHZ54-14 21-1/4” x 2,000
FH35-35/70 13-5/8” x 5,000 / 10,000 FHZ75-3.5 29-1/2’’ x 500
FH35-70 13-5/8” x 10,000
FH35-70/105 13-5/8” x 10,000 / 15,000


Well Control API 16A Double Ram BOP Drill Spare Parts 0


Our company has always focused on research, development and innovation.TR will initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.


And we have many years of history in the petroleum equipment industry. Our main products include solid control equipment, drilling equipment, oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipe, vavle & pipe fitting and other oilfield tools.


Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
