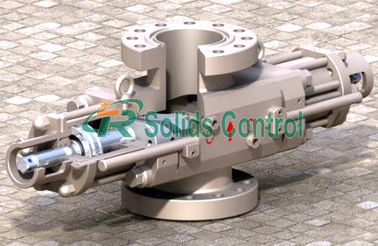

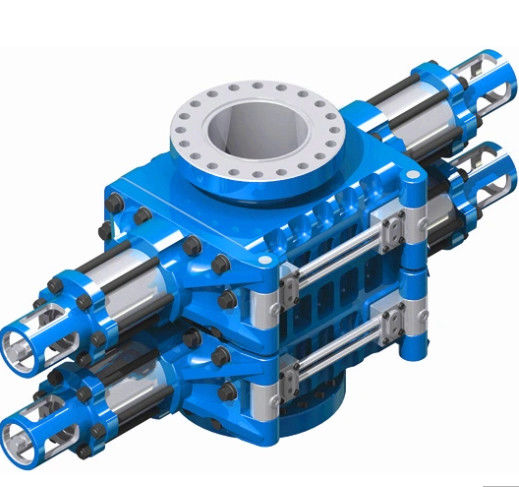

Forging High Pressure Carbon Steel Oil Drilling Bop

Forging High Pressure Carbon Steel Oil Drilling Bop
Forging High Pressure Carbon Steel Oil Drilling Bop Forging High Pressure Carbon Steel Oil Drilling Bop

Large Image :  Forging High Pressure Carbon Steel Oil Drilling Bop

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRFPQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 Pcs Per Month
Detailed Product Description
Size: 7-1/16"-30" Pressure: 500psi To 20000psi
Temperature: T75/T20/T0 Model: Annular,single,double
Processing Type: Forging, Casting Material: Carbon Steel
Certification: API, ISO Usage: Well Control System
High Light:

high pressure oil drilling bop

,

Carbon Steel oil drilling bop

API Oilfield Drilling Rig FZ35-70 Ram BOP or Blowout Preventer



Main Introduction



BOP is shut in the well for oil testing, workover, well completion and operating process to prevent the blowout accident, totally enclosed and semi-closed two functions into one, has a simple structure, easy to operate, resistant to high-pressure characteristics is used to prevent blowouts safety oilfield sealing wellhead.



Oil drilling, installed at the wellhead casing head, used to control the high pressure oil, gas, water blowout. Wells of oil and gas pressure is high, the BOP can be the wellhead closed (shut). The shutter has four, alternatively bullied invaded mud, increasing the pressure of the borehole fluid column, so as to suppress the high-pressure oil and gas discharged from the drill pipe is pressed into the heavy mud.



Its type sub-ordinary blowout preventer, of universal blowout preventers and rotating blowout preventer. Ordinary BOP ram with full-and semi-closure, full closure type blowout preventer can seal the entire wellhead; semi-sealed shut wellhead annular cross-section of drill pipe exists. Universal BOP can start in case of emergency to cope with any size drill and empty wells.



Operating Requirements of TR Drilling BOP:



  • Make regular pressure test on the annular preventer according to relevant standards.
  • It's feasible to control wellhead with annular preventer firstly when blowout occurs in a well where there are drilling tools, but try not to seal it for long, because rubber core is fragile and there is no locking device. Don't close empty well with it in non-special cases.
  • It's necessary to use a drilling tool with an 18-degree slope when annular preventer is used for snubbing tripping operation. Tripping speed should be slow when passing through joints, and all the rubber sleeves of the drilling tool should be uninstalled.
  • When annular preventer is in an off state and shut-in pressure is below 5Mpa, it's feasible to move the drilling tool up and down, but don't rotate it.
  • It's necessary to wash the inner cavity out to keep the switch flexible after well cementation and leaking stoppage, etc.
  • Be sure to pay special attention to sealing backing ring and steel ring groove when installing or uninstalling annular preventer, which cannot be cracked up or scratched.



Technical Parameters of Our Oilfield BOP



SIZE (MM) SIZE (IN) SIZE (MM) SIZE (IN)
FH18-21 7-1/16” x 3,000 FHZ18-70 7-1/16’’ x 10,000
FH18-35 7-1/16” x 5,000 FHZ18-70/105 7-1/16’’ x 10,000 / 15,000
FH18-35/70 7-1/16” x 5,000 / 10,000 FHZ28-35 11” x 5,000
FH23-21 9” x 3,000 FHZ28-70 11” x 10,000
FH28-35 11” x 5,000 FHZ28-70/105 11” x 10,000 / 15,000
FH28-35/70 11” x 5,000 / 10,000 FHZ28-105 11’’ x 15,000
FH28-70 11” x 10,000 FHZ28-105/140 11’’ x 15,000 / 20,000
FH28-70/105 11” x 10,000 / 15,000 FHZ35-21 13-5/8” x 3,000
FH35-21 13-5/8” x 3,000 FHZ53-21 20-3/4’’ x 3,000
FH35-35 13-5/8” x 5,000 FHZ54-14 21-1/4” x 2,000
FH35-35/70 13-5/8” x 5,000 / 10,000 FHZ75-3.5 29-1/2’’ x 500
FH35-70 13-5/8” x 10,000
FH35-70/105 13-5/8” x 10,000 / 15,000



Forging High Pressure Carbon Steel Oil Drilling Bop 0



Since the establishment of our company, we have been always sticking to the spirit of “Customer First, Quality Basis, Service Root, majoring in manufacturing and trade of petroleum equipments and technology. And we have obtained well-known reputation in the industry through our unremitting efforts in all these years. We will go on developing our Jintan spirit to make more achievements in the field of petroleum equipment supply and petroleum technology service.



Our company has always focused on research, development and innovation.TR will initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
