Blowout Preventer Pressure Control Oilfield Single Ram Bop

Blowout Preventer Pressure Control Oilfield Single Ram Bop
Blowout Preventer Pressure Control Oilfield Single Ram Bop Blowout Preventer Pressure Control Oilfield Single Ram Bop

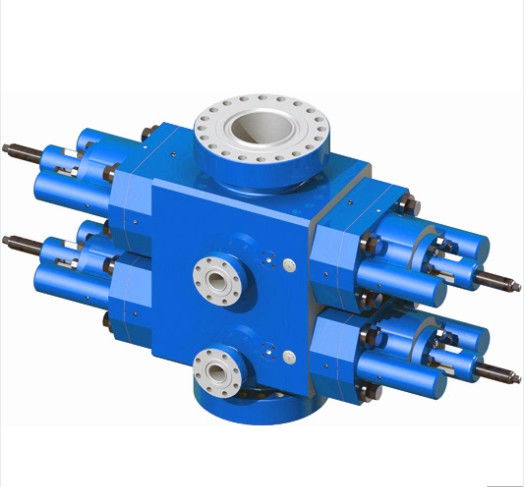

Large Image :  Blowout Preventer Pressure Control Oilfield Single Ram Bop

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRFPQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 Pcs Per Month
Detailed Product Description
Size: 7-1/16"-30" Pressure: 500psi To 20000psi
Temperature: T75/T20/T0 Model: Annular,single,double
Processing Type: Forging, Casting Material: Carbon Steel
Certification: API, ISO Usage: Well Control System
High Light:

Oilfield Single Ram Bop

,

pressure control Single Ram Bop

API 16A Standard Well Control System FZ Series Single Ram BOP for Oilfield



Product Introduction



The blowout preventer(BOP) is an essential pressure control device during driling and operations, as it serves to prevent the uncontrolled leakage of oil/gas from the wells. Our company can also produce annular BOP, single ram BOP and double ram BOP. The BOP rams are manifold, including: blind ram, pipe ram, shear ram and variable diameter ram.



According to the different opening and closing method of bonnet, ram BOP can be divided into two forms: Rotating bonnet ram BOP and linear bonnet ram BOP. For the rotating bonnet ram BOP, when opening or closing bonnet, the bonnet rotates on the hinge sear fastened on the body, the ram cam cavity shape of such BOP is rectangle.



Main Operating Requirements of TR Drilling BOP:



  • Make regular pressure test on the annular preventer according to relevant standards.
  • It's feasible to control wellhead with annular preventer firstly when blowout occurs in a well where there are drilling tools, but try not to seal it for long, because rubber core is fragile and there is no locking device. Don't close empty well with it in non-special cases.
  • It's necessary to use a drilling tool with an 18-degree slope when annular preventer is used for snubbing tripping operation. Tripping speed should be slow when passing through joints, and all the rubber sleeves of the drilling tool should be uninstalled.
  • When annular preventer is in an off state and shut-in pressure is below 5Mpa, it's feasible to move the drilling tool up and down, but don't rotate it.
  • It's necessary to wash the inner cavity out to keep the switch flexible after well cementation and leaking stoppage, etc.
  • Be sure to pay special attention to sealing backing ring and steel ring groove when installing or uninstalling annular preventer, which cannot be cracked up or scratched.
  • After entering the target layer, try to shut in the well with drilling tool after tripping each time, to check how well the rubber core seal the well. It should be replaced at once if not up to standard.



Main Technical Parameters of Our Oilfield BOP



SIZE (MM) SIZE (IN) SIZE (MM) SIZE (IN)
FH18-21 7-1/16” x 3,000 FHZ18-70 7-1/16’’ x 10,000
FH18-35 7-1/16” x 5,000 FHZ18-70/105 7-1/16’’ x 10,000 / 15,000
FH18-35/70 7-1/16” x 5,000 / 10,000 FHZ28-35 11” x 5,000
FH23-21 9” x 3,000 FHZ28-70 11” x 10,000
FH28-35 11” x 5,000 FHZ28-70/105 11” x 10,000 / 15,000
FH28-35/70 11” x 5,000 / 10,000 FHZ28-105 11’’ x 15,000
FH28-70 11” x 10,000 FHZ28-105/140 11’’ x 15,000 / 20,000
FH28-70/105 11” x 10,000 / 15,000 FHZ35-21 13-5/8” x 3,000
FH35-21 13-5/8” x 3,000 FHZ53-21 20-3/4’’ x 3,000
FH35-35 13-5/8” x 5,000 FHZ54-14 21-1/4” x 2,000
FH35-35/70 13-5/8” x 5,000 / 10,000 FHZ75-3.5 29-1/2’’ x 500
FH35-70 13-5/8” x 10,000
FH35-70/105 13-5/8” x 10,000 / 15,000
