Product Details:
Payment & Shipping Terms:
|
| Size: | 7-1/16"-30" | Pressure: | 500psi To 20000psi |
|---|---|---|---|
| Temperature: | T75/T20/T0 | Model: | Annular,single,double |
| Processing Type: | Forging, Casting | Material: | Carbon Steel |
| Certification: | API, ISO | Usage: | Well Control System |
| Highlight: | 10000 PSI Drill Spare Parts,13 5/8" Drill Spare Parts |
||

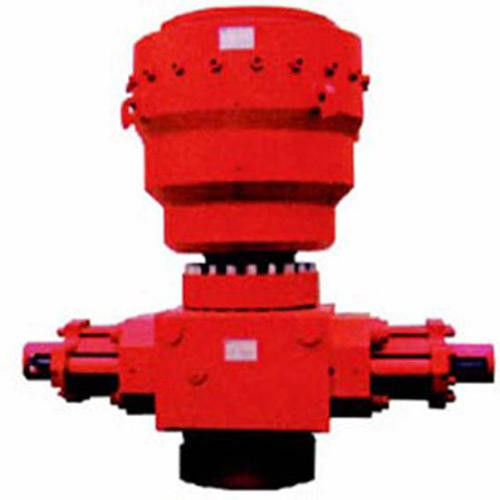

API 16A Annular BOP FH35-70 13 5/8'' 10000PSI for Oil Drilling
Product Overview
Blowout preventer is an important component assembly of well control device. It is characterized by flexible switch, easy operation, safety in use and simple maintenance, etc. Our Bops are designed as per the API 16A Specification, with good quality and best competitive price. Two types of Bop are offered by JIELIN: Annular Bop and Ram Bop.
The design and manufacture of Annular BOP is according to API 16A standard. Annular blowout preventer is manipulated by hydraulic control system. Packing element is spherical or tapered type with massive storage volume, low operation pressure and excellent sealing function.
Main Advantages of Our Annular BOP:
1) Strong simple construction and space saving design with only five major components.
2) Simple hydraulic system with only two hydraulic connections required.
3) Wear ring on moving parts to prolong the life of the preventers.
4) Easy servicing on field.
5) Low operating pressure.
6) Rugged reliable sealing elements.
7) Steel segments reinforce sealing element.
8) Long stripping life
9) Body Style: Single
Technical Parameters of Our Annular BOP
| Specifications and technical parameters of Annular Bop (Model A) | |||||
| Model | Bore(mm) | Working pressure(Mpa/psi) | Close volume(L) | Open volume(L) | Weight(kg)for reference |
| FHZ18-70 | 179.4 | 70/10000 | 36 | 27 | 6293 |
| FHZ28-70 | 279.4 | 70/10000 | 67 | 66 | 12290 |
| FHZ35-70 | 346.1 | 70/10000 | 116 | 117 | 15190 |
| FHZ43-35 | 425.4 | 35/5000 | 134 | 134 | 14100 |
| FHZ54-14 | 539.7 | 14/2000 | 95.3 | 94.5 | 7660 |
| Specifications and technical parameters of Annular Bop (Model D) | |||||
| biede | Bore(mm) | Working pressure(Mpa/psi) | Close volume(L) | Open volume(L) | Weight(kg)for reference |
| FH18-21 | 179.4 | 21/3000 | 21 | 15 | 1433 |
| FH18-35 | 35/5000 | 21 | 15 | 1520 | |
| FH23-21 | 228.6 | 21/3000 | 34 | 22.8 | 2398 |
| FH23-35 | 35/5000 | 42 | 33 | 2986 | |
| FH28-21 | 279.4 | 21/3000 | 50 | 39 | 2950 |
| FH28-35 | 35/5000 | 6 | 72 | 4675 | |
| FH35-21 | 346.1 | 21/3000 | 94 | 69 | 5738 |
| FH35-35 | 35/5000 | 94 | 69 | 6415 | |
| FH48-35 | 425.3 | 35/5000 | 220 | 171 | 16000 |
| FH53-21 | 427 | 21/3000 | 173 | 110 | 6994 |
| FH54-35 | 539.7 | 35/5000 | 241 | 181 | 20230 |
TR Solids Control had explored the international market and enlarged international cooperation 10 years. Due to the competitive price, good quality and excellent service, our products are sold to America,Canada,Brazil,Columbia, Venezuela,India,Iran,UAE,Russia ,Kazakhastan,Italy,Hungary ,Australia,Syria,Egypt ,etc .and get good reputation from our overseaclients .
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
