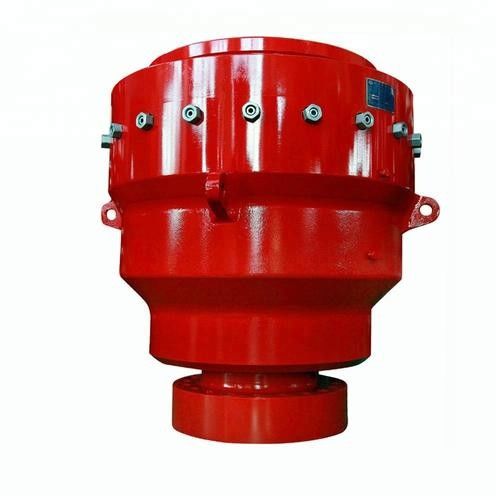

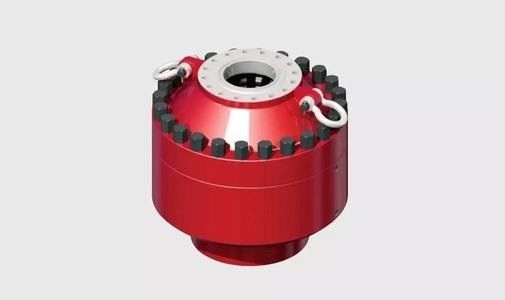

Oil Well Control Oilfield Annular Blowout Preventer

Oil Well Control Oilfield Annular Blowout Preventer
Oil Well Control Oilfield Annular Blowout Preventer Oil Well Control Oilfield Annular Blowout Preventer Oil Well Control Oilfield Annular Blowout Preventer

Large Image :  Oil Well Control Oilfield Annular Blowout Preventer

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRFPQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 Pcs Per Month
Detailed Product Description
Size: 7-1/16"-30" Pressure: 500psi To 20000psi
Temperature: T75/T20/T0 Model: Annular,single,double
Processing Type: Forging, Casting Material: Carbon Steel
Certification: API, ISO Usage: Well Control System
High Light:

Oilfield Annular Blowout Preventer

,

Oilfield Annular BOP

Oilfield Annular BOP / Blowout Preventer for Oil Well Control



Product Introduction



Annular blowout preventer is manipulated by hydraulic control system. When it is shut off, high pressure oil flows into piston underside closed cavity through the oil port in central shell, to push piston upwards, and the conical surface of piston squeezes rubber core. Due to the restrictions of head cover, rubber core can't go upwards but is pushed towards the center of wellhead until it enclasps drilling tool or enclose wellhead totally to shut the well. When well needs to be opened, manipulate the reversing valve of hydraulic control system, so that high pressure oil should flow into the open cavity on top of piston through the oil mouth on shell, to push piston downwards and decompress closed cavity, in which case, the extrusion force on the conical surface of rubber core is removed, and the rubber core is reset gradually with the action of its own elastic force to open wellhead.



Product Specifications
Design & Manufacture:API 16A, GB/T20174
Connection:Studded top,flange/Studded bottom
Nominal Diameter: 4-1/16"~21-1/4"
Working Pressure: 2, 000psi, 3, 000psi, 5, 000psi, 10, 000psi, 15, 000psi, 20, 000psi
Body Material: Forging
Drive Type: Hydraulic



Main Characterstics of Our Annular BOP:



1) According to the number of ram installed in each set, ram BOP can be divided into: Single ram, double ram and three ram BOP, which are respectively installed with one ram, two rams or three rams.
2) According to the ram opening and closing method, ram BOP can be divided into manual locking and hydraulic locking.
3) According to the different opening and closing method of bonnet, ram BOP can be divided into two forms: Rotating bonnet ram BOP and linear bonnet ram BOP. For the rotating bonnet ram BOP, when opening or closing bonnet, the bonnet rotates on the hinge sear fastened on the body, the ram cam cavity shape of such BOP is rectangle.
4) For the linear bonnet ram BOP, when opening or closing bonnet, the bonnet makes linear motion along the two bonnet opening and closing plunger rods fastened on the body, the ram cavity shape of such BOP is elliptic.



Technical Specifications of Our Annular BOP



Specifications and technical parameters of Annular Bop (Model A)
Model Bore(mm) Working pressure(Mpa/psi) Close volume(L) Open volume(L) Weight(kg)for reference
FHZ18-70 179.4 70/10000 36 27 6293
FHZ28-70 279.4 70/10000 67 66 12290
FHZ35-70 346.1 70/10000 116 117 15190
FHZ43-35 425.4 35/5000 134 134 14100
FHZ54-14 539.7 14/2000 95.3 94.5 7660
Specifications and technical parameters of Annular Bop (Model D)
biede Bore(mm) Working pressure(Mpa/psi) Close volume(L) Open volume(L) Weight(kg)for reference
FH18-21 179.4 21/3000 21 15 1433
FH18-35 35/5000 21 15 1520
FH23-21 228.6 21/3000 34 22.8 2398
FH23-35 35/5000 42 33 2986
FH28-21 279.4 21/3000 50 39 2950
FH28-35 35/5000 6 72 4675
FH35-21 346.1 21/3000 94 69 5738
FH35-35 35/5000 94 69 6415
FH48-35 425.3 35/5000 220 171 16000
FH53-21 427 21/3000 173 110 6994
FH54-35 539.7 35/5000 241 181 20230



Oil Well Control Oilfield Annular Blowout Preventer 0



TR Solids Control offers a wide range of annular and ram type BOP. Our BOPs are widely used on surface and subsea.
They are manufactured in accordance with API specifacations 16A latest edition.



Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). We have become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
