Product Details:
Payment & Shipping Terms:
|
| Size: | 7-1/16"-30" | Pressure: | 500psi To 20000psi |
|---|---|---|---|
| Temperature: | T75/T20/T0 | Model: | Annular,single,double |
| Processing Type: | Forging, Casting | Material: | Carbon Steel |
| Certification: | API, ISO | Usage: | Well Control System |
| High Light: | 2000psi annular blowout preventer,4-1/16" annular blowout preventer |
||

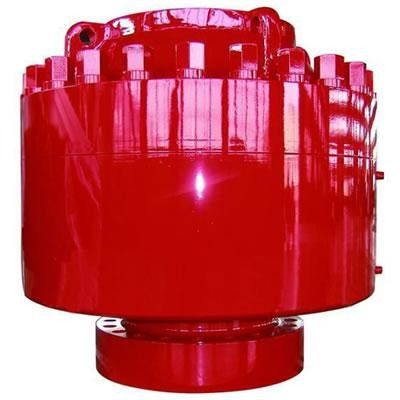

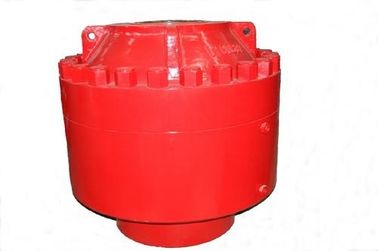

4-1/16" 2000psi Annular Blowout Preventer / Bop API 6A in Oilfield
Product Introduction
BOP is a large valve used to control wellbore fluids. In this type of valve, the sealing element resembles a large rubber doughnut that is mechanically squeezed inward to seal on either pipe (drill collar, drillpipe, casing, or tubing) or the openhole. The ability to seal on a variety of pipe sizes is one advantage the annular blowout preventer has over the ram blowout preventer. Most blowout preventer stacks contain at least one annular BOP at the top of the BOP stack and one or more ram-type preventers below.
Specifications
Design & Manufacture:API 16A, GB/T20174
Connection:Studded top,flange/Studded bottom
Nominal Diameter: 4-1/16"~21-1/4"
Working Pressure: 2, 000psi, 3, 000psi, 5, 000psi, 10, 000psi, 15, 000psi, 20, 000psi
Body Material: Forging
Drive Type: Hydraulic
Main Features of Our Annular BOP:
• Designed for coiled tubing, snubbing, and wireline operations.
• Quick and efficient packer replacement and a shorter overall height.
• Configuration has a studded body for quick removal of the bonnet and rapid packer removal.
• Lightweight and compact design.
• Includes vented ports between the hydraulic system seals and the wellbore seals.
Technical Specifications of Our Annular BOP
| Specifications and technical parameters of Annular Bop (Model A) | |||||
| Model | Bore(mm) | Working pressure(Mpa/psi) | Close volume(L) | Open volume(L) | Weight(kg)for reference |
| FHZ18-70 | 179.4 | 70/10000 | 36 | 27 | 6293 |
| FHZ28-70 | 279.4 | 70/10000 | 67 | 66 | 12290 |
| FHZ35-70 | 346.1 | 70/10000 | 116 | 117 | 15190 |
| FHZ43-35 | 425.4 | 35/5000 | 134 | 134 | 14100 |
| FHZ54-14 | 539.7 | 14/2000 | 95.3 | 94.5 | 7660 |
| Specifications and technical parameters of Annular Bop (Model D) | |||||
| biede | Bore(mm) | Working pressure(Mpa/psi) | Close volume(L) | Open volume(L) | Weight(kg)for reference |
| FH18-21 | 179.4 | 21/3000 | 21 | 15 | 1433 |
| FH18-35 | 35/5000 | 21 | 15 | 1520 | |
| FH23-21 | 228.6 | 21/3000 | 34 | 22.8 | 2398 |
| FH23-35 | 35/5000 | 42 | 33 | 2986 | |
| FH28-21 | 279.4 | 21/3000 | 50 | 39 | 2950 |
| FH28-35 | 35/5000 | 6 | 72 | 4675 | |
| FH35-21 | 346.1 | 21/3000 | 94 | 69 | 5738 |
| FH35-35 | 35/5000 | 94 | 69 | 6415 | |
| FH48-35 | 425.3 | 35/5000 | 220 | 171 | 16000 |
| FH53-21 | 427 | 21/3000 | 173 | 110 | 6994 |
| FH54-35 | 539.7 | 35/5000 | 241 | 181 | 20230 |
TR Solids Control is a professional supplier of various oilfield equipment, including oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts.
Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). We have become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
