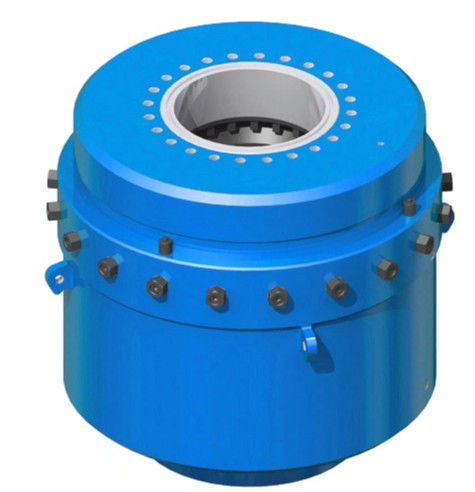

Carbon Steel API 16A Forging Well Control Annular BOP

Carbon Steel API 16A Forging Well Control Annular BOP
Carbon Steel API 16A Forging Well Control Annular BOP Carbon Steel API 16A Forging Well Control Annular BOP Carbon Steel API 16A Forging Well Control Annular BOP

Large Image :  Carbon Steel API 16A Forging Well Control Annular BOP

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRFPQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 Pcs Per Month
Detailed Product Description
Size: 7-1/16"-30" Pressure: 500psi To 20000psi
Temperature: T75/T20/T0 Model: Annular,single,double
Processing Type: Forging, Casting Material: Carbon Steel
Certification: API, ISO Usage: Well Control System
High Light:

Annular BOP

,

Suck Rod Annular BOP

BOP Annular BOP Well Control Equipment Oilfield Equipment Suck Rod BOP



Main Introduction

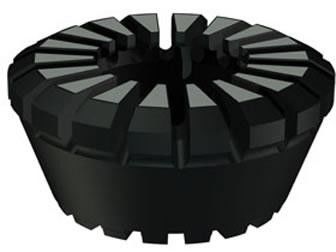

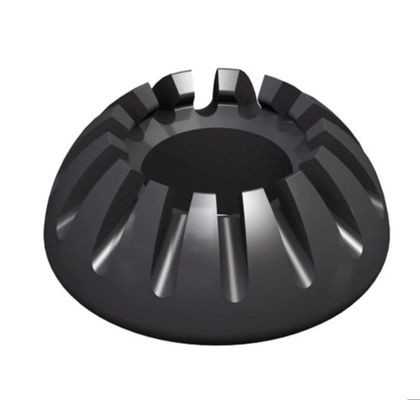

Soherical packing units and conical packing units using in all type annular preventers, which could seal all types bore size and be used for bore size and coild be used for isolating empty well.



Main Specification:
Standard: API 16A
Technical parameters:
Bore hole: 179,4;228,6;279.4;346.1mm
Pressure:21,35,70Mpa
Connection: Threaded connection or flange connection



Design Advantages of Our Annular BOP:

  1. Rubber core store glue big quantity, small friction resistance, when switch pressure sealing ability.
  2. Using hemispherical head, no stress concentration phenomenon when under pressure, casing stress evenly, easy to tear open outfit.
  3. Piston stroke is short, low height, and set the wear ring.
  4. Long-life sealing element provides positive seal after hundreds of tests to full working pressure.
  5. Strong, simple construction- only five major parts, which simplifies maintenance.
  6. Sealing element design provides long stripping life.
  7. High sulfate-resistant blowout preventer internal all parts contact well liquid surfacing high nickel base alloy, can achieve the highest levels of resistance to effect such as H2S and CO2. For the customer to choose.

Key Specifications of Our Annular BOP



Specifications and technical parameters of Annular Bop (Model A)
Model Bore(mm) Working pressure(Mpa/psi) Close volume(L) Open volume(L) Weight(kg)for reference
FHZ18-70 179.4 70/10000 36 27 6293
FHZ28-70 279.4 70/10000 67 66 12290
FHZ35-70 346.1 70/10000 116 117 15190
FHZ43-35 425.4 35/5000 134 134 14100
FHZ54-14 539.7 14/2000 95.3 94.5 7660
Specifications and technical parameters of Annular Bop (Model D)
biede Bore(mm) Working pressure(Mpa/psi) Close volume(L) Open volume(L) Weight(kg)for reference
FH18-21 179.4 21/3000 21 15 1433
FH18-35 35/5000 21 15 1520
FH23-21 228.6 21/3000 34 22.8 2398
FH23-35 35/5000 42 33 2986
FH28-21 279.4 21/3000 50 39 2950
FH28-35 35/5000 6 72 4675
FH35-21 346.1 21/3000 94 69 5738
FH35-35 35/5000 94 69 6415
FH48-35 425.3 35/5000 220 171 16000
FH53-21 427 21/3000 173 110 6994
FH54-35 539.7 35/5000 241 181 20230



Carbon Steel API 16A Forging Well Control Annular BOP 0



TR Solids Control is a professional well head manufacturer and supplier of various oilfield equipment, which has API 6A,ISO9001,14001,OHSAS 18001 , so on . Main products include oil drilling and service equipment,oil production equipment,OCTG ,wellhead gate, Christmas tree, kill and chock manifold & downhole tools and spare parts with API certification. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Sino Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
