Product Details:
Payment & Shipping Terms:
|
| Size: | 4 1/2"-30" | Connection Thread: | BTC,LTC,STC, Premium Connnection |
|---|---|---|---|
| Steel Grade: | J55,K55,L80,N80,T95,C90,P110 | Material: | Carbon Steel, Steel & Aluminum |
| Classification: | Aluminium Alloy Or Cement | Max. OD: | 365 270 195 189 Mm |
| Float Shoe Length: | 515 500 416mm | Float Collar Length: | 350 370 320 Mm |
| High Light: | Cementing Tool casing float shoe,Oilfield Casing Float Shoe |
||

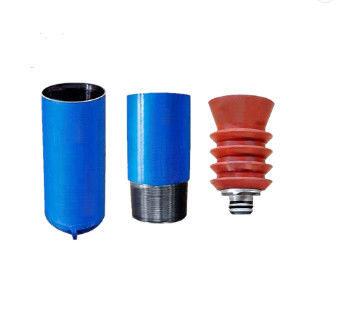

High Performance Oilfield Cementing Tool Casing Float Collar Float Shoe
Product Introduction
The cement float collar& shoe offer dependable performance for all classes of oil and gas wells. The plunger type valves prevent cement backflow, provide casing buoyancy during run-in, and act as internal bops during the process of running and cementing the casing. Our float collar & shoe sizes range from 5 1/2” – 30” with float ball, stab in, non-rotating, spring and single / double valve types. Products in our factory are all manufactured to API standard, with strict quality control and inspection.
Float Collar:
Float collar is a component installed near the bottom of the casing string on which cement plugs land during the primary cementing operation. It contains a check valve to permit fluid to pass downward but not upward through the casing. The float collar prevents drilling mud from entering the casing while it is being lowered, allowing the casing to float during its descent and thus decreasing the load on the or mast.
Float Shoe:
Float show allow operator to maintain a constant fluid height inside the casing of a well. It also contains a check valve to prevent back flow. It functions similarly to the float collar but also serves as a guide shoe for the casing.
Types Available
Single valve and double valve are available;
Spring structure valve and ball strucuture valve are available;
Insert type and normal type are available.
Non-rotating type and normal type are available.
Technical Specifications of Casing Float Collar & Float Shoe
| Specification(in) | O.D.(mm) | Total length(mm) | I.D.(mm) | Min.Dia.(mm) | Conn Type | Affordable strength of back-pressure(Mpa) | |
| Float Collar | 5 | 141.30 | 500 | 110 | 50 | 5 BCSG | 35 |
| 5 1/2 | 153.67 | 530 | 112 | 55 | 5 1/2BCSG | 35 | |
| 7 | 194.46 | 586 | 162.5 | 77 | 7 BCSG | 35 | |
| 9 5/8 | 270 | 720 | 225 | 77 | 9 5/8 BCSG | 35 | |
| 13 3/8 | 365 | 720 | 319 | 77 | 133/8 BCSG | 35 | |
| 20 | 533.4 | 720 | 475 | 77 | 20 BCSG | 35 | |
| Float Shoe | 5 | 140.30 | 495 | 110 | 50 | 5 BCSG | 35 |
| 5 1/2 | 153.67 | 514 | 122 | 55 | 5 1/2 BCSG | 35 | |
| 7 | 194.46 | 533 | 162.5 | 77 | 7 BCSG | 35 | |
| 9 5/8 | 269.88 | 550 | 225 | 77 | 9 5/8 BCSG | 35 | |
| 13 3/8 | 339.7 | 550 | 319 | 77 | 133/8 BCSG | 35 | |
| 20 | 534 | 652 | 475 | 77 | 20 BCSG | 35 | |
TR Solids Control mainly engages in offering oil drilling and production equipment and providing oilfield technical service. Our target is to supply our products and spread company culture to all over the world. We will build a new stage, and we will welcome all the friends from all over the world, to cooperate sincerely and create our brilliant future!
Packing & Delivery
Our float collar and shoe are packed in wood cases or pallets as per API standard or as customer's requirement. Professional packing and loading machines make products' quality & appearance free from damage.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
