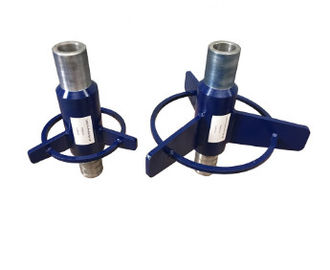

Cementing Casing 9 5/8" Oilfield Float Shoes And Collars

Cementing Casing 9 5/8" Oilfield Float Shoes And Collars
Cementing Casing 9 5/8" Oilfield Float Shoes And Collars Cementing Casing 9 5/8" Oilfield Float Shoes And Collars Cementing Casing 9 5/8" Oilfield Float Shoes And Collars

Large Image :  Cementing Casing 9 5/8" Oilfield Float Shoes And Collars

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRFG/TRFX

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 10 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000000 Pcs Per Month
Detailed Product Description
Size: 4 1/2"-30" Connection Thread: BTC,LTC,STC, Premium Connnection
Steel Grade: J55,K55,L80,N80,T95,C90,P110 Material: Carbon Steel, Steel & Aluminum
Classification: Aluminium Alloy Or Cement Max. OD: 365 270 195 189 Mm
Float Shoe Length: 515 500 416mm Float Collar Length: 350 370 320 Mm
High Light:

Oilfield float shoes and collars

,

9 5/8" Float Shoes And Collars

Oilfield Casing Cementing Tool 9 5/8" Float Collar & Float Shoe



Product Overview



Float collar is run in a casing assembly, usually several joints above the Float Shoe. It serves as an extra back pressure valve sealing against pressures from blow while running the assembly and after the cementing job. Internal latch and valve are readily drillable. Its capability of back-pressure is over 25MPa.



Like the Float Collar, the float shoe also has a back-pressure valve to prevent back flow. It permits cement to run through side ports when the nose of the shoe is on the bottom. Inner valve and bottom guides are all made of drillable material. Its capability of back-pressure is over 25MPa.

Our Auto Fill Cementing Float Shoe offer afixed radial area that allows fluid to enter the casing and seek its own height.


This action lowers surge pressures on formations to a minimum, reduces casing running time and, the chances of it sticking are lessened. Casing can be circulated at any time, with low rates, without converting thealve from the fill-up to the back-pressure mode.

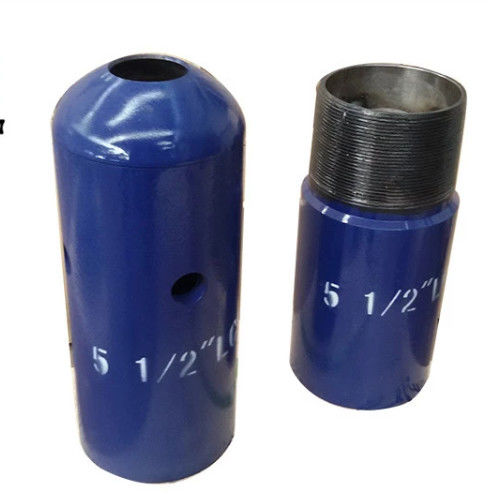

Cementing Casing 9 5/8" Oilfield Float Shoes And Collars 0



Main Benefits of Our Float Collar & Float Shoe:

  1. Valve seat and valve disk can effectively prevent grout from flowing back.
  2. API spec.Q1 and ISO9000 certification.
  3. The device can be connected directly to same type casing.
  4. All inner parts are made of easily drillable aluminum alloy.
  5. Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
  6. Hardness of base material is equivalent to API Spec N-80.

Technical Info. of Casing Float Collar & Float Shoe



Specification(in) O.D.(mm) Total length(mm) I.D.(mm) Min.Dia.(mm) Conn Type Affordable strength of back-pressure(Mpa)
Float Collar 5 141.30 500 110 50 5 BCSG 35
5 1/2 153.67 530 112 55 5 1/2BCSG 35
7 194.46 586 162.5 77 7 BCSG 35
9 5/8 270 720 225 77 9 5/8 BCSG 35
13 3/8 365 720 319 77 133/8 BCSG 35
20 533.4 720 475 77 20 BCSG 35
Float Shoe 5 140.30 495 110 50 5 BCSG 35
5 1/2 153.67 514 122 55 5 1/2 BCSG 35
7 194.46 533 162.5 77 7 BCSG 35
9 5/8 269.88 550 225 77 9 5/8 BCSG 35
13 3/8 339.7 550 319 77 133/8 BCSG 35
20 534 652 475 77 20 BCSG 35

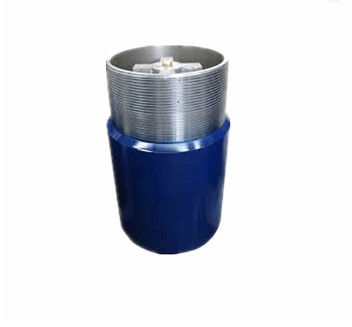

Cementing Casing 9 5/8" Oilfield Float Shoes And Collars 1



We are specialized in oilfield equipment and accessories including casing centralizers, float equipment, stage collars, cementing plugs, cementing heads, cement baskets, casing & tubing pipes, sucker rods, drill pipes, drill collars, pumping units, etc.



Xi'an TianRui Petroleum Machinery Equipment Company Limited is one of the exporting windows of China Petroleum Machinery. Our company integrates the R&D, machinery processing and technical service of petroleum machinery products. We aim at providing clients with satisfying products and service to benefit both clients and employees. Being master in petroleum machinery, Supplying high quality products to clients, Being honesty to everyone.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
