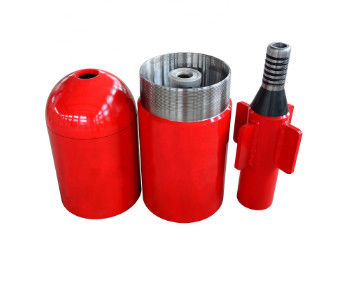

Cementing API Oilfield Float Collar And Float Shoe

Cementing API Oilfield Float Collar And Float Shoe
Cementing API Oilfield Float Collar And Float Shoe Cementing API Oilfield Float Collar And Float Shoe

Large Image :  Cementing API Oilfield Float Collar And Float Shoe

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRFG/TRFX

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 10 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000000 Pcs Per Month
Detailed Product Description
Size: 4 1/2"-30" Connection Thread: BTC,LTC,STC, Premium Connnection
Steel Grade: J55,K55,L80,N80,T95,C90,P110 Material: Carbon Steel, Steel & Aluminum
Classification: Aluminium Alloy Or Cement Max. OD: 365 270 195 189 Mm
Float Shoe Length: 515 500 416mm Float Collar Length: 350 370 320 Mm
High Light:

Oilfield float collar and float shoe

,

API Float Collar And Float Shoe

API Oilfield Drilling Cementing Casing Pipe Float Collar and Float Shoe



Product Description



The cement float collar & shoe offer dependable performance for all classes of oil and gas wells. The plunger type valves prevent cement backflow, provide casing buoyancy during run-in, and act as internal bops during the process of running and cementing the casing. Our float collar & shoe sizes range from 5 1/2” – 30” with float ball, stab in, non-rotating, spring and single / double valve types. Products in our factory are all manufactured to API standard, with strict quality control and inspection.



Float Collar:
Float collar is a component installed near the bottom of the casing string on which cement plugs land during the primary cementing operation. It contains a check valve to permit fluid to pass downward but not upward through the casing. The float collar prevents drilling mud from entering the casing while it is being lowered, allowing the casing to float during its descent and thus decreasing the load on the derrick or mast.



Float Shoe:
Float show allow operator to maintain a constant fluid height inside the casing of a well. It also contains a check valve to prevent back flow. It functions similarly to the float collar but also serves as a guide shoe for the casing.



Design Features of Our Float Collar & Float Shoe:

  1. All inner parts are made of easily drillable aluminum alloy.
  2. The device can be connected directly to same type casing.
  3. Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
  4. Valve seat and valve disk can effectively prevent grout from flowing back.
  5. Hardness of base material is equivalent to API Spec N-80.
  6. API spec.Q1 and ISO9000 certification.

Main Parameters of TR Casing Float Collar & Float Shoe



Specification(in) O.D.(mm) Total length(mm) I.D.(mm) Min.Dia.(mm) Conn Type Affordable strength of back-pressure(Mpa)
Float Collar 5 141.30 500 110 50 5 BCSG 35
5 1/2 153.67 530 112 55 5 1/2BCSG 35
7 194.46 586 162.5 77 7 BCSG 35
9 5/8 270 720 225 77 9 5/8 BCSG 35
13 3/8 365 720 319 77 133/8 BCSG 35
20 533.4 720 475 77 20 BCSG 35
Float Shoe 5 140.30 495 110 50 5 BCSG 35
5 1/2 153.67 514 122 55 5 1/2 BCSG 35
7 194.46 533 162.5 77 7 BCSG 35
9 5/8 269.88 550 225 77 9 5/8 BCSG 35
13 3/8 339.7 550 319 77 133/8 BCSG 35
20 534 652 475 77 20 BCSG 35



Cementing API Oilfield Float Collar And Float Shoe 0



We are specialized in oilfield equipment and accessories including casing centralizers, float equipment, stage collars, cementing plugs, cementing heads, cement baskets, casing & tubing pipes, sucker rods, drill pipes, drill collars, pumping units, etc.


We are committed to providing high-quality and cost-effective products and services to our customers.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet


Customer's satisfaction is the highest pursuit of TR Solids Control.
