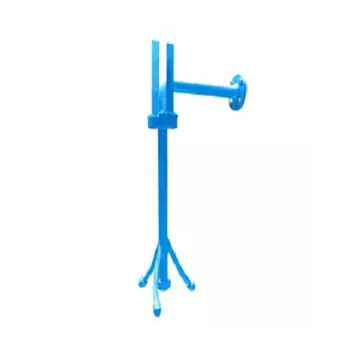

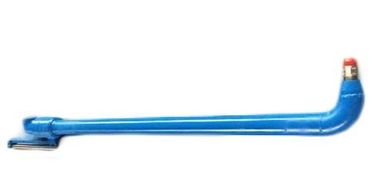

Vibration Free 80mm Diameter API Drilling Rig Mud Gun

Vibration Free 80mm Diameter API Drilling Rig Mud Gun
Vibration Free 80mm Diameter API Drilling Rig Mud Gun Vibration Free 80mm Diameter API Drilling Rig Mud Gun

Large Image :  Vibration Free 80mm Diameter API Drilling Rig Mud Gun

Product Details:

Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRNJQ80-3X

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 30000 Pcs / Month
Detailed Product Description
Working Pressure: ≤3.2Mpa Diameter: 80mm
Rotation Angle: 360° Nozzle Qty: 3 Pcs
Weight: 200kg Key Words: Drilling Fluids Mud Gun, Oil & Gas Mud Gun, Solids Control Mud Gun
High Light:

drill fluid gun


solid control mud gun

Drilling Rig Spare Parts Solid Control System API Mud Gun


Product Introduction


Mud Gun is also called Drilling Liquid Gun , it is mainly used to washout and stir the dead angle which the mud mixer is unable to stir in the drilling liquid circulation.Full stir mixing of drilling liquid circulation tank can make the solid phase uniform suspend, so that can be convenient for all levels of drilling liquid purification system to fractionate separate.


TRNJQ mud gun has simple structure, flexible operation, and can prevent mud precipitation in the corner. Generally mud guns include highpressure mud guns and low pressure mud guns. Drilling fluids through the nozzle produce high-speed flow for achieving the purpose of mixing drilling fluids. The pressure and flow rate are transmitted by the high pressure main drilling pump or by centrifugal pumps in most cases.


TR mud gun is used to provide primary mixing inside mud tank. Due to the number and pit size, the treatment effect will differ accordingly. They are usually adopted to clean the wall tube and every corner of the tank in order to prevent the solids from sediment in the mud tank. It is usually matched with mud agitator to finish the whole process of agitation.


Design Advantages of TRNJQ Series Mud Gun


(1). Compact design. Quiet, smooth, vibration free.
(2). Durable, single reduction worm gear drive.
(3). Fewer moving parts, less maintenance.
(4). Compact design without coupling, IEC top brand gear box.
(5). C-Face Explosion proof electrical motor direct connection with gear box. ATEX, IEC Ex, and Marine.


Technical Parameters of TRNJQ Series Mud Gun


Model TRNJQ50-3 TRNJQ50-3X TRNJQ80-3 TRNJQ80-3X
Diameter 50mm 50mm 80mm 80mm
Working Pressure ≤6.4MPa ≤3.2MPa ≤6.4MPa ≤3.2MPa
Nozzle No. 1/3e
Rotation Angle N/A 360° N/A 360°








Vibration Free 80mm Diameter API Drilling Rig Mud Gun 0


All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.


Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
