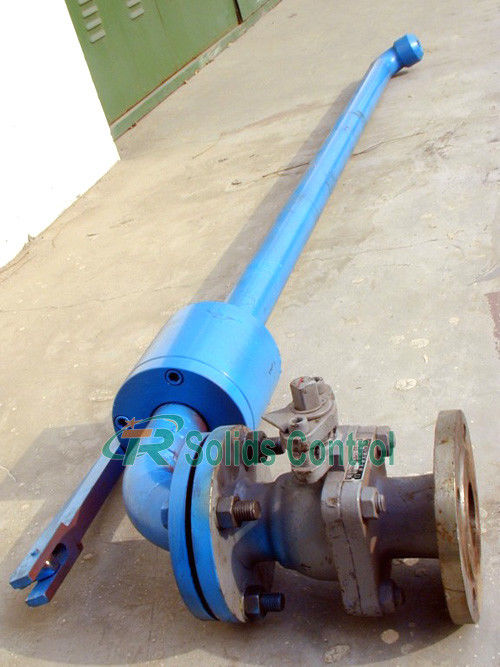

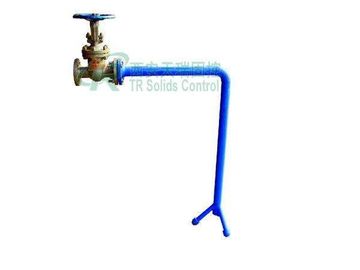

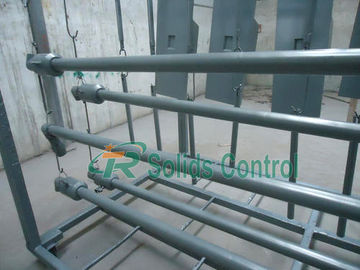

Oilfield Rotating Fluid Solids Control Drilling Mud Gun

Oilfield Rotating Fluid Solids Control Drilling Mud Gun
Oilfield Rotating Fluid Solids Control Drilling Mud Gun Oilfield Rotating Fluid Solids Control Drilling Mud Gun Oilfield Rotating Fluid Solids Control Drilling Mud Gun

Large Image :  Oilfield Rotating Fluid Solids Control Drilling Mud Gun

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRNJQ80-1X
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 30000 Pcs / Month
Detailed Product Description
Working Pressure: ≤3.2Mpa Diameter: 3"
Rotation Angle: 360 Degree Nozzle Qty: 1 Pc
Weight: 50kg Key Words: High Efficiency TRNJQ Series Mud Gun For Oil & Gas Drilling Mud Recovery System, API And ISO Certified
High Light:

drill fluid gun

,

solid control mud gun

Oilfield Drilling Fluid Solids Control Oilfield Rotating Mud Gun



Main Introduction



TR premium quality mud gun is reliable for common use, that is available to standard mud tank and mud pump. It is with a nozzle or multi-nozzles on the top of transfer pipe. Our mud guns are light weight, small footprint and easy transportation. Especially, the nozzle can rotate 360° which can affuse muds into mud tank regularly. Other features include a 360° rotating swivel, and the ability to be customised to any length.



Mud guns are used to stir the compartments or bulkheads and are generally used in conjunction with mud agitator, theoretically after the last solid phase control. In the solid control system, drilling fluid or drilling mud are sprayed and stirred by mud gun. It can stir the mud of tank bottom uniformly, especially inside the sub-warehouse under the last solid phase control equipment.



TRNJQ series drilling fluid mud gun is our company's independent design and production, make the solid control system perfect combination, the work coordination so that the whole solid control system into a unified whole.



Key Features of TR Drilling Mud Gun

  1. Adopts high-speed jet nozzle, with strong stirring and shearing function.
  2. Discharge nozzle are made from polyurethane material, with long service life.
  3. Can be 360° all-round rotation, easy to operate.
  4. Flexible on configuration of size and pressure rates.
  5. Jet nozzle is both replaceable and wearable.

Specifications of TRNJQ Series Mud Gun



Model TRNJQ50-3 TRNJQ50-3X TRNJQ80-3 TRNJQ80-3X
Diameter 50mm 50mm 80mm 80mm
Working Pressure ≤6.4MPa ≤3.2MPa ≤6.4MPa ≤3.2MPa
Nozzle No. 1/3e
Rotation Angle N/A 360° N/A 360°















Oilfield Rotating Fluid Solids Control Drilling Mud Gun 0



What you need to do?
1. Provide the original bidding documents for our review and translation (preferably in Excel or word format, the documents in picture format may affect the processing speed).
2. Provide company information including name, address and website for our review.
3. Our industry tends to pay by T / T, and L / C and D/P, T/T is considered first.
4. Please let us know the bid closing time so that we can be well prepared.
5. Leave the contact information of communication software such as WeChat, WhatsApp.



TR Solids Control is a professional manufacturer of solid control system/equipment in china. we will provide our client high quality products with most reasonable price, at the same time we also sincerely offer the high level after sales service for any home or abroad clients. We still adhere to the concept of Creating the maximum values and the satisfaction for our clients.



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
