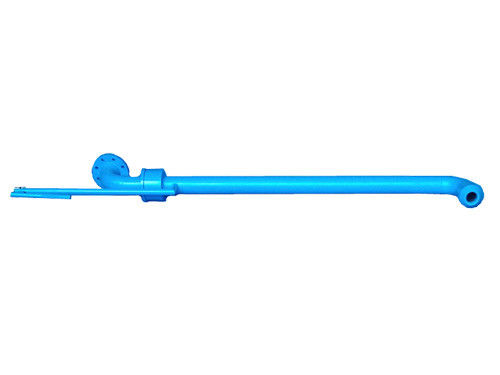

3" 1 Nozzle 360 Degree Rotation Drill Fluid Gun

3" 1 Nozzle 360 Degree Rotation Drill Fluid Gun
3" 1 Nozzle 360 Degree Rotation Drill Fluid Gun 3" 1 Nozzle 360 Degree Rotation Drill Fluid Gun

Large Image :  3" 1 Nozzle 360 Degree Rotation Drill Fluid Gun

Product Details:

Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRNJQ80-1X

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 3000 Pcs / Month
Detailed Product Description
Working Pressure: ≤3.2Mpa Diameter: 3"
Rotation Angle: 360 Degree Nozzle Qty: 1 Pc
Weight: 50kg Key Words: HDD Mud Gun, Oil And Gas Drilling Mud Gun, Drilling Fluids Mud Gun
High Light:

drill fluid gun

,

solid control mud gun

Stable Performance Solid Control Equipments Mud Gun with 1 Nozzle



Introduction



Mud guns are usually used along with mud agitator. That means, almost every compartment on tank will request a mud gun. And there are bottom type mud gun, pivot type mud gun, and non spin type mud gun. For mud gun nozzle, there are 1 or 3 as options for clients.



Mud gun is a mud precipitation solids control equipment along with mud agitator in oil and gas drilling process. Its main power are source of mud pump or jet mud mixer. This equipment has simple structure, flexible operation, and can prevent mud precipitation in the corner. Generally mud guns include high pressure mud guns and low pressure mud guns. In the solids control system, drilling fluids or drilling mud are sprayed and stirred by mud gun. It can stir the mud of tank bottom uniformly, especially inside the sub-warehouse under the last solid phase control equipment.



Mud Guns are designed for submerged service in mud pits and are popular in 2", 3". Besides, 4” is available against client request. They can be high pressure gun, or low pressure, high volume service such as in mud mixing systems employing centrifugal pumps.



Key Specialties of TRNJQ Series Drilling Mud Gun

  1. Adopts high-speed jet nozzle, with strong stirring and shearing function.
  2. Flexible on configuration of size and pressure rates.
  3. Jet nozzle is both replaceable and wearable.
  4. Discharge nozzle are made from polyurethane material, with long service life.
  5. Can be 360° all-round rotation, easy to operate.

Main Specifications of TRNJQ Series Mud Gun



Model TRNJQ50-3 TRNJQ50-3X TRNJQ80-3 TRNJQ80-3X
Diameter 50mm 50mm 80mm 80mm
Working Pressure ≤6.4MPa ≤3.2MPa ≤6.4MPa ≤3.2MPa
Nozzle No. 1/3e
Rotation Angle N/A 360° N/A 360°















3" 1 Nozzle 360 Degree Rotation Drill Fluid Gun 0



Our Service


1. We can reply within 3 hours after receiving the inquiry.
2. We give 24 hours online, skype: lauren@trsolidscontrol.com, urgent WeChat: +86 13186019625.
3. We have professional translators (Russian, Spanish, Arabic, English, etc.)
4. We will complete the quotation within one to two weeks.
5. The product warranty period is one year.
6. We will provide a competitive price according to different bidding requirements.



TRNJQ series mud gun is widely used in tunnelling construction, oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, mining, paper making, cement plant, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, environment protection, Water Drilling, coal washing, municipal projects, thermal power generation etc.



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
