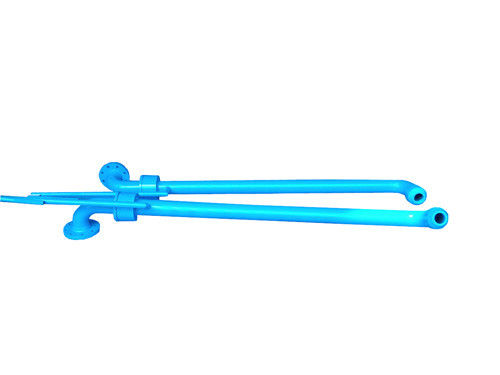

Oil Mud Seperation 80mm Diameter 6.4Mpa Drilling Mud Gun

Oil Mud Seperation 80mm Diameter 6.4Mpa Drilling Mud Gun
Oil Mud Seperation 80mm Diameter 6.4Mpa Drilling Mud Gun

Large Image :  Oil Mud Seperation 80mm Diameter 6.4Mpa Drilling Mud Gun

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRNJQ80-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 30000 Pcs / Month
Detailed Product Description
Working Pressure: ≤6.4Mpa Diameter: 80mm
Rotation Angle: N/A Nozzle Qty: 1 Pc
Weight: 100kg Key Words: Drilling Fluids Mud Gun, Oil & Gas Mud Gun, Solids Control Mud Gun
High Light:

drill fluid gun

,

solid control mud gun

Solid Control Equipments Mud Gun NJQ80-3 / Drilling Mud Gun



Product Introduction



TRNJQ series mud gun is widely used in trenchless HDDDrilling Waste Managementcity bored piling, oil & gas drillingtunnelling construction, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, Coal Bed Gas Solids Control System, thermal power generation, mining, paper making, Water Drilling, municipal projects, coal washing, cement plant etc.



Mud Gun is usually connected to the top of drilling liquid circulation tank , it is distributed into high-pressure and low-presssure two types. High-pressure mud gun features large capacity and high pressure, usually has drilling pump to supply liquid. Low-pressure mud gun features large capacity and low pressure , is usually has sand pump supplied.





When mud gun installed on the compartment of the solids control equipment (such as centrifuges, desander), it is possible to occur this case that liquid in pump could carry solid phase. Liquid carrying solid phase (especially sand), if continuous recycle will lead to rapid wear of pump components and mud gun nozzles. Drilling fluid density, viscosity and nozzle speed, size and feed pressure will have an impact on the use of results. In addition, the elbow, tee, valves and pipe size will also affect the actual performance of mud gun.



Main Characterstics of TR Drilling Mud Gun



(1). Compact design. Quiet, smooth, vibration free.
(2). Durable, single reduction worm gear drive.
(3). Fewer moving parts, less maintenance.
(4). Compact design without coupling, IEC top brand gear box.
(5). C-Face Explosion proof electrical motor direct connection with gear box. ATEX, IEC Ex, and Marine.​



Technical Data of TRNJQ Series Mud Gun



Model TRNJQ50-3 TRNJQ50-3X TRNJQ80-3 TRNJQ80-3X
Diameter 50mm 50mm 80mm 80mm
Working Pressure ≤6.4MPa ≤3.2MPa ≤6.4MPa ≤3.2MPa
Nozzle No. 1/3e
Rotation Angle N/A 360° N/A 360°















Oil Mud Seperation 80mm Diameter 6.4Mpa Drilling Mud Gun 0
