360° Rotation Low Pressure Oilfield Solid Control Mud Gun

360° Rotation Low Pressure Oilfield Solid Control Mud Gun
360° Rotation Low Pressure Oilfield Solid Control Mud Gun 360° Rotation Low Pressure Oilfield Solid Control Mud Gun

Large Image :  360° Rotation Low Pressure Oilfield Solid Control Mud Gun

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRNJQ50-3X
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 30000 Pcs / Month
Detailed Product Description
Working Pressure: ≤3.2Mpa Diameter: 50mm
Rotation Angle: 360° Nozzle Qty: 3 Pcs
Weight: 120kg Key Words: Drilling Fluids Mud Gun, Oil & Gas Mud Gun, Solids Control Mud Gun
High Light:

drill fluid gun

,

solid control mud gun

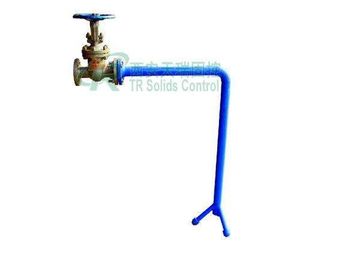

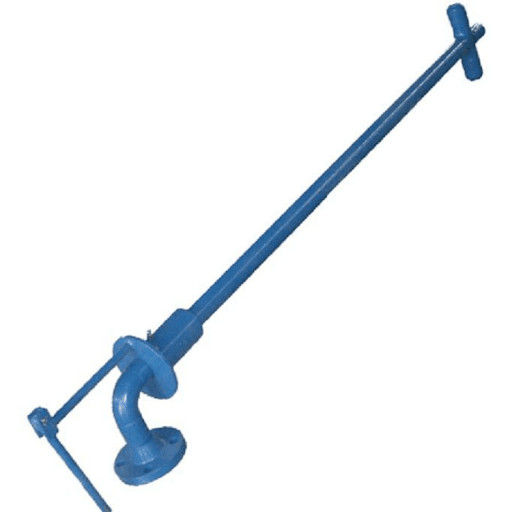

NJQ50-3X Low Pressure Oilfield Drilling Solids Control Mud Gun



Main Introduction



TRNJQ mud gun is used to provide primary mixing inside mud tank. Due to the number and pit size, the treatment effect will differ accordingly. They are usually adopted to clean the wall tube and every corner of the tank in order to prevent the solids from sediment in the mud tank. It is usually matched with mud agitator to finish the whole process of agitation.



TRNJQ series Mud Gun is designed for solids control system in drilling process. It is one kind of special tool which is mainly used in the drilling mud circulation system and prevents the mud precipitates. The structure of mud gun is simple, flexible operation and easy using. Mud gun is the ideal equipment to guard against the precipite in mud tank for fluids processing system.



Mud guns are usually used along with mud agitator. That means, almost every compartment on tank will request a mud gun. And there are bottom type mud gun, pivot type mud gun, and non spin type mud gun. For mud gun nozzle, there are 1 or 3 as options for clients.



Key Benefits of TRNJQ Series Oilfield Mud Gun

  1. Can be 360° all-round rotation, easy to operate.
  2. Flexible on configuration of size and pressure rates.
  3. et nozzle is both replaceable and wearable.
  4. Adopts high-speed jet nozzle, with strong stirring and shearing function.
  5. Discharge nozzle are made from polyurethane material, with long service life.

Main Specifications of TRNJQ Series Mud Gun



Model TRNJQ50-3 TRNJQ50-3X TRNJQ80-3 TRNJQ80-3X
Diameter 50mm 50mm 80mm 80mm
Working Pressure ≤6.4MPa ≤3.2MPa ≤6.4MPa ≤3.2MPa
Nozzle No. 1/3e
Rotation Angle N/A 360° N/A 360°
