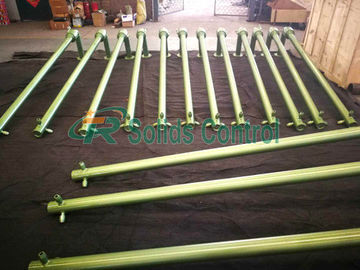

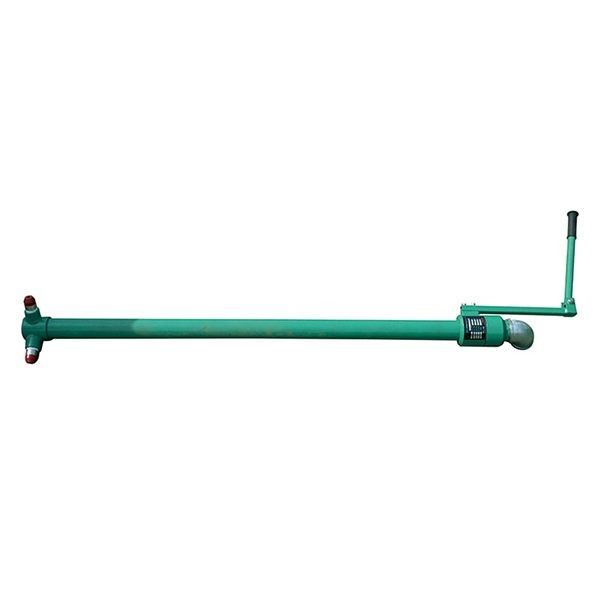

Fixed Control 3 Rotating Nozzles 3.2Mpa Drill Fluid Gun

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

Fixed Control 3 Rotating Nozzles 3.2Mpa Drill Fluid Gun

Fixed Control 3 Rotating Nozzles 3.2Mpa Drill Fluid Gun
Fixed Control 3 Rotating Nozzles 3.2Mpa Drill Fluid Gun Fixed Control 3 Rotating Nozzles 3.2Mpa Drill Fluid Gun

Large Image :  Fixed Control 3 Rotating Nozzles 3.2Mpa Drill Fluid Gun

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRNJQ80-3X
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 30000 Pcs / Month
Detailed Product Description
Working Pressure: ≤3.2Mpa Diameter: 80mm
Rotation Angle: 360° Nozzle Qty: 3 Pcs
Weight: 200kg Key Words: Drilling Fluids Mud Gun, Oil & Gas Mud Gun, Solids Control Mud Gun
High Light:

drill fluid gun

,

solid control mud gun

API Drilling Mud System Mud Gun with 3 Rotating Nozzles



Product Introduction



Mud gun is a specialized tool for preventing mud deposition which is conducive for TR driller-mud fixed control system. It is widely used in the recovery system of drilling mud. Power of source of the mentioned device derives from reflux system or low-pressure sand pump of drilling mud pump. It features in simple structure, flexible operation, convenient application, making itself an ideal anti-deposition device of mud fixed control system.



TRNJQ mud gun has simple structure, flexible operation, and can prevent mud precipitation in the corner. Generally mud guns include high pressure mud guns and low pressure mud guns. Drilling fluids through the nozzle produce high-speed flow for achieving the purpose of mixing drilling fluids. The pressure and flow rate are transmitted by the high pressure main drilling pump or by centrifugal pumps in most cases.



The choosing of mud gun depends on the tank size. It is usually installed with mud line. We can provide 2’’ and 3’’ inlet pipe for option and our mud gun can be classified into three kinds--low pressure, medium pressure and high pressure. And it is mainly used to match with centrifugal pump or shear pump. TR mud gun has nice sealing performance and high wear-resisting replaceable nozzle, which will bring the mud treatment into a better efficiency.



Design Features of TR Drilling Mud Gun

  1. High quality national standard steel.
  2. Discharge nozzles can be polyurethane and tungsten carbide alloy material.
  3. Flexible on configuration of size and pressure rates.
  4. Simple design and easy to operate.
  5. High quality painting job per international standard.

Technical Specifications of TRNJQ Series Drilling Mud Gun



Model TRNJQ50-3 TRNJQ50-3X TRNJQ80-3 TRNJQ80-3X
Diameter 50mm 50mm 80mm 80mm
Working Pressure ≤6.4MPa ≤3.2MPa ≤6.4MPa ≤3.2MPa
Nozzle No. 1/3e
Rotation Angle N/A 360° N/A 360°















Fixed Control 3 Rotating Nozzles 3.2Mpa Drill Fluid Gun 0



Based on China fast-development petroleum machine industry system, TR Solids Control has already established a stable and complete recourse net. We have gained the close relationship and priority from many powerful manufacturers .This obvious advantage makes us always can supply competitive price,technology and delivery. We are a bridge to connect China With the world.



Why you need to choose TR Solids Control?
As a professional oil and gas manufacturing company, TR Solids Control has many good experience in selling and serves for the oilfield industries for years. Quality is the culture of the company, we provide API and BV certified products for customer.



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
