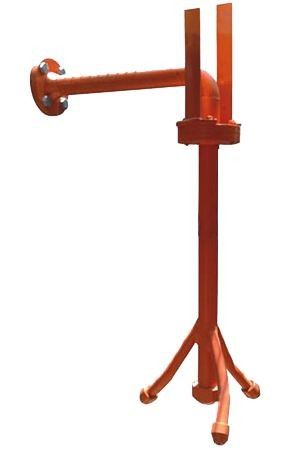

Oilfield Solid Control System API Drilling Rig Mud Gun

Oilfield Solid Control System API Drilling Rig Mud Gun
Oilfield Solid Control System API Drilling Rig Mud Gun Oilfield Solid Control System API Drilling Rig Mud Gun

Large Image :  Oilfield Solid Control System API Drilling Rig Mud Gun

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRNJQ80-1X
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 300 Pcs / Month
Detailed Product Description
Working Pressure: ≤3.2Mpa Diameter: 3"
Rotation Angle: 360 Degree Nozzle Qty: 1 Pc
Weight: 50kg Key Words: Mud Gun For Oil & Gas Drilling, Mud Recovery System, API And ISO Certified
High Light:

drill fluid gun

,

solid control mud gun

Solid Control System Drilling Rig Mud Gun , Oilfield Mud Gun



Product Information


Mud Gun is usually connected to the top of drilling liquid circulation tank , it is distributed into high-pressure and low-presssure two types. High-pressure mud gun features large capacity and high pressure, usually has drilling pump to supply liquid. Low-pressure mud gun features large capacity and low pressure , is usually has sand pump supplied.

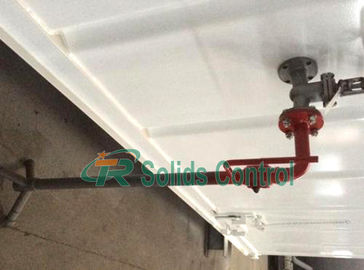

Mud Gun is designed to clean the mud residue in mud tank bottom or pump suction inlets in solids control system to prevent mud sediment happening and keep tank clean to prolong the equipment service life. TRNJQ series mud gun can be easy to vortically work in 360°and can be fixed at the tank bottom with better stability.



The function of mud gun is striking the sediment at the bottom of circulation tank with certain pressure which supplied by triplex pump or centrifugal pump,and then mixing the drilling liquid evenly by agitation of the agitator.It also can be used to wash the sand setting of the tank.



Design Features of TRNJQ Series Drilling Mud Gun

  1. Jet nozzle is both replaceable and wearable.
  2. Flexible on configuration of size and pressure rates.
  3. Adopts high-speed jet nozzle, with strong stirring and shearing function.
  4. Can be 360° all-round rotation, easy to operate.
  5. Discharge nozzle are made from polyurethane material, with long service life.

Main Specifications of TRNJQ Series Mud Gun



Model TRNJQ50-3 TRNJQ50-3X TRNJQ80-3 TRNJQ80-3X
Diameter 50mm 50mm 80mm 80mm
Working Pressure ≤6.4MPa ≤3.2MPa ≤6.4MPa ≤3.2MPa
Nozzle No. 1/3e
Rotation Angle N/A 360° N/A 360°
