Standard 3 Nozzle Oilfield Solid Control Mud Gun

Standard 3 Nozzle Oilfield Solid Control Mud Gun
Standard 3 Nozzle Oilfield Solid Control Mud Gun Standard 3 Nozzle Oilfield Solid Control Mud Gun Standard 3 Nozzle Oilfield Solid Control Mud Gun

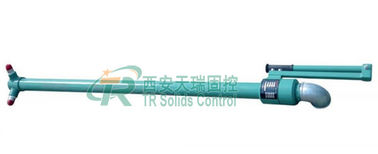

Large Image :  Standard 3 Nozzle Oilfield Solid Control Mud Gun

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRNJQ80-3X
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 30000 Pcs / Month
Detailed Product Description
Working Pressure: ≤3.2Mpa Diameter: 80mm
Rotation Angle: 360° Nozzle Qty: 3 Pcs
Weight: 200kg Key Words: Drilling Fluids Mud Gun, Oil & Gas Mud Gun, Solids Control Mud Gun
High Light:

drill fluid gun

,

solid control mud gun

Standard Oilfield Equipment Solid Control Custom Mud Gun



Product Introduction



Mud gun is a specialized tool for preventing mud deposition which is conducive for TR driller-mud fixed control system. It is widely used in the recovery system of drilling mud. Power of source of the mentioned device derives from reflux system or low-pressure sand pump of drilling mud pump. It features in simple structure, flexible operation, convenient application, making itself an ideal anti-deposition device of mud fixed control system.



TRNJQ mud gun has simple structure, flexible operation, and can prevent mud precipitation in the corner. Generally mud guns include high pressure mud guns and low pressure mud guns. Drilling fluids through the nozzle produce high-speed flow for achieving the purpose of mixing drilling fluids. The pressure and flow rate are transmitted by the high pressure main drilling pump or by centrifugal pumps in most cases.



The mud gun in the mud system can also be used for transfer mud from compartment to compartment, like for trip tank compartment. TR Mud Guns are available for rotation adjustment to allow the operator to optimize the mud guns performance. The replaceable wear resistant jet nozzle is used, which is special design with better shearing.



Design Benefits of TRNJQ Series Mud Gun



(1). Compact design. Quiet, smooth, vibration free.
(2). Durable, single reduction worm gear drive.
(3). Fewer moving parts, less maintenance.
(4). Compact design without coupling, IEC top brand gear box.
(5). C-Face Explosion proof electrical motor direct connection with gear box. ATEX, IEC Ex, and Marine.



Technical Parameters of TRNJQ Series Mud Gun



Model TRNJQ50-3 TRNJQ50-3X TRNJQ80-3 TRNJQ80-3X
Diameter 50mm 50mm 80mm 80mm
Working Pressure ≤6.4MPa ≤3.2MPa ≤6.4MPa ≤3.2MPa
Nozzle No. 1/3e
Rotation Angle N/A 360° N/A 360°
