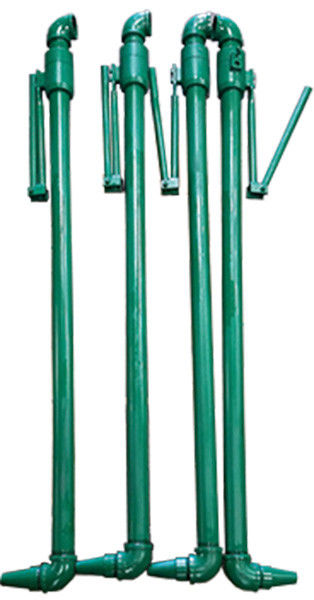

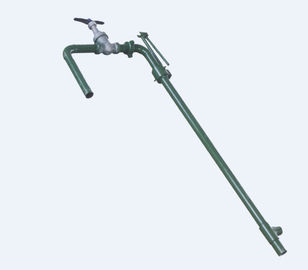

3" Diameter Stirring Shearing Drilling Mud Gun

3" Diameter Stirring Shearing Drilling Mud Gun
3" Diameter Stirring Shearing Drilling Mud Gun 3" Diameter Stirring Shearing Drilling Mud Gun

Large Image :  3" Diameter Stirring Shearing Drilling Mud Gun

Product Details:

Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRNJQ80-1X

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 30000 Pcs / Month
Detailed Product Description
Working Pressure: ≤3.2Mpa Diameter: 3"
Rotation Angle: 360 Degree Nozzle Qty: 1 Pc
Weight: 50kg Key Words: High Efficiency TRNJQ Series Mud Gun For Oil & Gas Drilling Mud Recovery System, API And ISO Certified
High Light:

drill fluid gun

,

solid control mud gun

Drilling Fluid Solids Control Oilfield Equipment Mud Gun



Main Introduction



TR mud gun is used to provide primary mixing inside mud tank. Due to the number and pit size, the treatment effect will differ accordingly. They are usually adopted to clean the wall tube and every corner of the tank in order to prevent the solids from sediment in the mud tank. It is usually matched with mud agitator to finish the whole process of agitation.



Mud guns are used to stir the compartments or bulkheads and are generally used in conjunction with mud agitator, theoretically after the last solid phase control. In the solid control system, drilling fluid or drilling mud are sprayed and stirred by mud gun. It can stir the mud of tank bottom uniformly, especially inside the sub-warehouse under the last solid phase control equipment.


The role of the mud gun is the use of three-cylinder pump or centrifugal pump to provide a certain pressure to impact the bottom of the tank sediment, and then stir the mixer to mix the drilling fluid, it can also be used to clean the bottom of the sediment.



Main Features of TR Drilling Mud Gun

  1. Adopts high-speed jet nozzle, with strong stirring and shearing function.
  2. Discharge nozzle are made from polyurethane material, with long service life.
  3. Can be 360° all-round rotation, easy to operate.
  4. Flexible on configuration of size and pressure rates.
  5. Jet nozzle is both replaceable and wearable.

Main Specifications of TRNJQ Series Mud Gun



Model TRNJQ50-3 TRNJQ50-3X TRNJQ80-3 TRNJQ80-3X
Diameter 50mm 50mm 80mm 80mm
Working Pressure ≤6.4MPa ≤3.2MPa ≤6.4MPa ≤3.2MPa
Nozzle No. 1/3e
Rotation Angle N/A 360° N/A 360°















3" Diameter Stirring Shearing Drilling Mud Gun 0



What you need to do?
1. Provide the original bidding documents for our review and translation (preferably in Excel or word format, the documents in picture format may affect the processing speed).
2. Provide company information including name, address and website for our review.
3. Our industry tends to pay by T / T, and L / C and D/P, T/T is considered first.
4. Please let us know the bid closing time so that we can be well prepared.
5. Leave the contact information of communication software such as WeChat, WhatsApp.



TRNJQ series mud gun is widely used in tunnelling construction, oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, mining, paper making, cement plant, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, environment protection, Water Drilling, coal washing, municipal projects, thermal power generation etc.



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
