Product Details:
Payment & Shipping Terms:
|
| Working Pressure: | ≤3.2Mpa | Diameter: | 3" |
|---|---|---|---|
| Rotation Angle: | 360 Degree | Nozzle Qty: | 1 Pc |
| Weight: | 50kg | Key Words: | HDD Mud Gun, Oil And Gas Drilling Mud Gun, Drilling Fluids Mud Gun |
| High Light: | drill fluid gun,solid control mud gun |
||

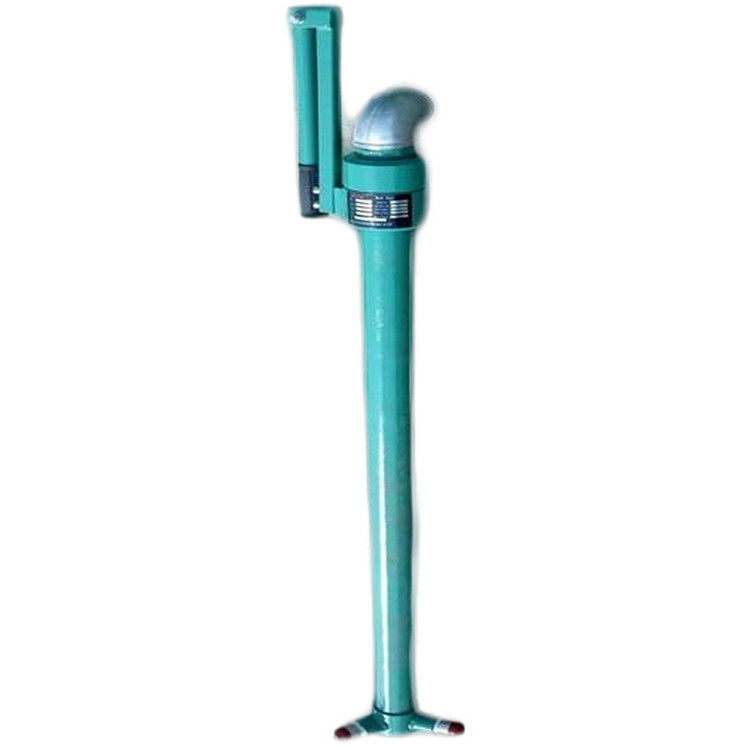

Oilfield Drilling Mud Gun High Capacity Mud Gun for Solids Control System
Introduction
Mud Gun is also called Drilling Liquid Gun , it is mainly used to washout and stir the dead angle which the mud mixer is unable to stir in the drilling liquid circulation.Full stir mixing of drilling liquid circulation tank can make the solid phase uniform suspend, so that can be convenient for all levels of drilling liquid purification system to fractionate separate .
The mud gun in the mud system can also be used for transfer mud from compartment to compartment, like for trip tank compartment. TR Mud Guns are available for rotation adjustment to allow the operator to optimize the mud guns performance. The replaceable wear resistant jet nozzle is used, which is special design with better shearing.
The role of the mud gun is the use of three-cylinder pump or centrifugal pump to provide a certain pressure to impact the bottom of the tank sediment, and then stir the mixer to mix the drilling fluid, it can also be used to clean the bottom of the sediment.
Main Features of TRNJQ Series Drilling Mud Gun
Technical Info. of TRNJQ Series Mud Gun
| Model | TRNJQ50-3 | TRNJQ50-3X | TRNJQ80-3 | TRNJQ80-3X |
| Diameter | 50mm | 50mm | 80mm | 80mm |
| Working Pressure | ≤6.4MPa | ≤3.2MPa | ≤6.4MPa | ≤3.2MPa |
| Nozzle No. | 1/3e | |||
| Rotation Angle | N/A | 360° | N/A | 360° |
Our Service
1. We can reply within 3 hours after receiving the inquiry.
2. We give 24 hours online, skype: lauren@trsolidscontrol.com, urgent WeChat: +86 13186019625.
3. We have professional translators (Russian, Spanish, Arabic, English, etc.)
4. We will complete the quotation within one to two weeks.
5. The product warranty period is one year.
6. We will provide a competitive price according to different bidding requirements.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
