Wear Resisting Fluid Oilfield Solid Control Mud Gun

Wear Resisting Fluid Oilfield Solid Control Mud Gun
Wear Resisting Fluid Oilfield Solid Control Mud Gun Wear Resisting Fluid Oilfield Solid Control Mud Gun

Large Image :  Wear Resisting Fluid Oilfield Solid Control Mud Gun

Product Details:

Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRNJQ80-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 30000 Pcs / Month
Detailed Product Description
Working Pressure: ≤6.4Mpa Diameter: 80mm
Rotation Angle: N/A Nozzle Qty: 1 Pc
Weight: 100kg Key Words: Drilling Fluids Mud Gun, Oil & Gas Mud Gun, Solids Control Mud Gun
High Light:

drill fluid gun

,

solid control mud gun

Oilfield Drilling Fluid Powerful High Quality Solid Control System Mud Gun



Product Introduction

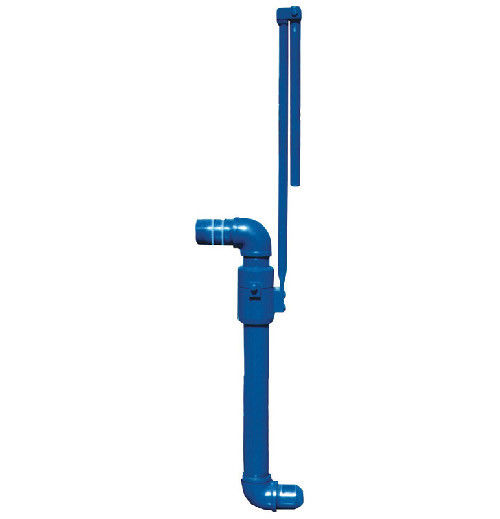

TRNJQ mud gun is used to provide primary mixing inside mud tank. Due to the number and pit size, the treatment effect will differ accordingly. They are usually adopted to clean the wall tube and every corner of the tank in order to prevent the solids from sediment in the mud tank. It is usually matched with mud agitator to finish the whole process of agitation.



The choosing of mud gun depends on the tank size. It is usually installed with mud line. We can provide 2’’ and 3’’ inlet pipe for option and our mud gun can be classified into three kinds--low pressure, medium pressure and high pressure. And it is mainly used to match with centrifugal pump or shear pump. TR mud gun has nice sealing performance and high wear-resisting replaceable nozzle, which will bring the mud treatment into a better efficiency.



TRNJQ series mud gun is widely used in trenchless HDDDrilling Waste Managementcity bored piling, oil & gas drillingtunnelling construction, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, Coal Bed Gas Solids Control System, thermal power generation, mining, paper making, Water Drilling, municipal projects, coal washing, cement plant etc.



Characterstics of TR Drilling Mud Gun



(1). Compact design. Quiet, smooth, vibration free.
(2). Durable, single reduction worm gear drive.
(3). Fewer moving parts, less maintenance.
(4). Compact design without coupling, IEC top brand gear box.
(5). C-Face Explosion proof electrical motor direct connection with gear box. ATEX, IEC Ex, and Marine.​



Technical Parameters of TRNJQ Series Mud Gun



Model TRNJQ50-3 TRNJQ50-3X TRNJQ80-3 TRNJQ80-3X
Diameter 50mm 50mm 80mm 80mm
Working Pressure ≤6.4MPa ≤3.2MPa ≤6.4MPa ≤3.2MPa
Nozzle No. 1/3e
Rotation Angle N/A 360° N/A 360°















Wear Resisting Fluid Oilfield Solid Control Mud Gun 0



TR Solids Control is a professional petroleum equipment company, has right of foreign trade(import and export), mainly engaged in drilling solid-control equipment production including sand pump series, JQB serial shear pump, LW serial centrifuge, ZS/PS serial shale shaker, CS desander, CN desilter, QJ serial integrated cleaner, ZCQ vacuum deaerator, screen of shale shaker, mixing hopper, cyclone mixer, JBQ serial mud agitator, special screw conveyor and explosion-proof control box of various models etc. We have passed American Petroleum Institute (API), Norwegian DNV and American Bureau of Shipping (ABS) authoritative on-spot inspections.



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
