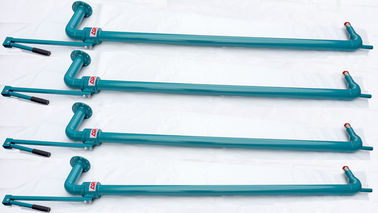

High Pressure 360° Rotating API Oilfield Drilling Mud Gun

High Pressure 360° Rotating API Oilfield Drilling Mud Gun
High Pressure 360° Rotating API Oilfield Drilling Mud Gun High Pressure 360° Rotating API Oilfield Drilling Mud Gun

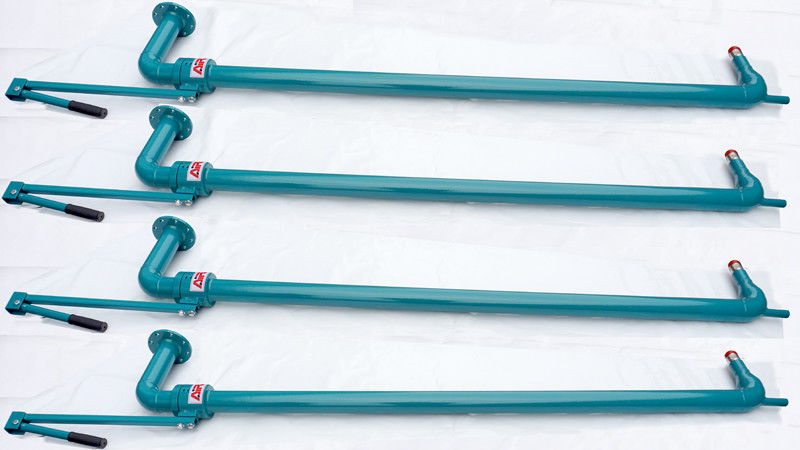

Large Image :  High Pressure 360° Rotating API Oilfield Drilling Mud Gun

Product Details:

Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRNJQ80-3X

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 300 Pcs / Month
Detailed Product Description
Working Pressure: ≤3.2Mpa Diameter: 80mm
Rotation Angle: 360° Nozzle Qty: 3 Pcs
Weight: 200kg Key Words: Drilling Fluids Mud Gun, Oil & Gas Mud Gun, Solids Control Mud Gun
High Light:

drill fluid gun

,

solid control mud gun

High Efficiency 360° Rotating API Mud Gun for Oilfield Drilling



Main Introduction



Mud gun is a mud precipitation solids control equipment along with mud agitator in oil and gas drilling process. Its main power are source of mud pump or jet mud mixer. This equipment has simple structure, flexible operation, and can prevent mud precipitation in the corner. Generally mud guns include high pressure mud guns and low pressure mud guns. In the solids control system, drilling fluids or drilling mud are sprayed and stirred by mud gun. It can stir the mud of tank bottom uniformly, especially inside the sub-warehouse under the last solid phase control equipment.



TRNJQ mud gun has simple structure, flexible operation, and can prevent mud precipitation in the corner. Generally mud guns include high pressure mud guns and low pressure mud guns. Drilling fluids through the nozzle produce high-speed flow for achieving the purpose of mixing drilling fluids. The pressure and flow rate are transmitted by the high pressure main drilling pump or by centrifugal pumps in most cases.



The function of mud gun is striking the sediment at the bottom of circulation tank with certain pressure which supplied by triplex pump or centrifugal pump,and then mixing the drilling liquid evenly by agitation of the agitator.It also can be used to wash the sand setting of the tank.



Design Features of TRNJQ Series Drilling Mud Gun

  1. High quality national standard steel.
  2. Discharge nozzles can be polyurethane and tungsten carbide alloy material.
  3. Flexible on configuration of size and pressure rates.
  4. Simple design and easy to operate.
  5. High quality painting job per international standard.

Main Specifications of TRNJQ Series Drilling Mud Gun



Model TRNJQ50-3 TRNJQ50-3X TRNJQ80-3 TRNJQ80-3X
Diameter 50mm 50mm 80mm 80mm
Working Pressure ≤6.4MPa ≤3.2MPa ≤6.4MPa ≤3.2MPa
Nozzle No. 1/3e
Rotation Angle N/A 360° N/A 360°

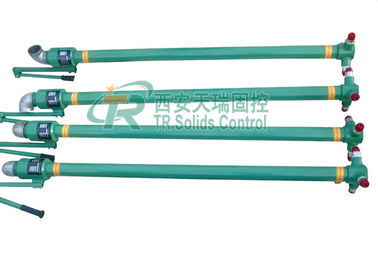

High Pressure 360° Rotating API Oilfield Drilling Mud Gun 0



Based on China fast-development petroleum machine industry system, TR Solids Control has already established a stable and complete recourse net. We have gained the close relationship and priority from many powerful manufacturers .This obvious advantage makes us always can supply competitive price,technology and delivery. We are a bridge to connect China With the world.



TRNJQ series mud gun is widely used in tunnelling construction, oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, mining, paper making, cement plant, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, environment protection, Water Drilling, coal washing, municipal projects, thermal power generation etc.



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
