Product Details:
Payment & Shipping Terms:
|
| Certification: | API 10D | Size: | 4 1/2 ''- 20" |
|---|---|---|---|
| Material: | Carbon Steel | ID: | 345mm |
| Processing Type: | Forging | OD: | 444mm |
| Application: | Well Drilling, Well Drilling | Type: | Cementing Accessories |
| High Light: | oilfield spare parts,drill accessories kit |
||

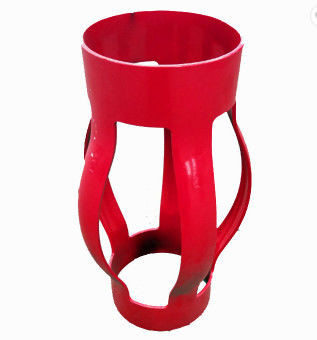

Oilfield Drilling Cement Equipment Bow Spring Casing Centralizer
Brief Introduction
Bow spring centralizers are to help center the casing in the wellbore, allowing even distribution of the cement around the casing during cementing operations. The single piece casing centralizer is made from special high strength steel (65Mn steel), which gives more excellent hardness and spring action than other types of centralizers.

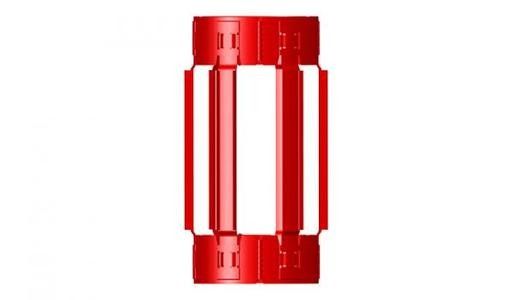

Two types: single bow and double bow.
The products are all stamping braided structure, no welding defects.It is a new product to replace the old welded casing centralizer, and can be widely used in the casing running operation of vertical Wells or high deviated Wells.
Main Specifications
1) Material: 65Mn steel
2) Type: Single Piece
3) Standard: API 10D
4) API and ISO certified
5) Specifications: 4 1/2''---20''. More special sizes or combination are available as requested.
6) Characteristic: This kind of single piece casing centralizer has restoring force almost two times of API standard.
Technical Data of TR Casing Centralizer
|
Model (in) |
Hooping In-Dia. (mm) | Hooping thickness(mm |
Total length (mm) |
Max.Out-Di (mm) |
Amount of spring(mm) |
| 5-1/2" x 8-1/2" | 142-148 | 3-5 | 650±50 | 225±5 | 5 |
| 7" x 9-5/8" | 181-186 | 3-5 | 650±50 | 255±5 | 6 |
| 7" x 8-1/2" | 181-186 | 3-5 | 650±50 | 235±5 | 6 |
| 8-5/8 x 12-1/4" | 223-228 | 3-5 | 650±50 | 330±5 | 8 |
| 9-5/8 x 12-1/4" | 250-255 | 3-5 | 650±50 | 330±5 | 8 |
| 10-3/4 x 12-1/4" | 274-276 | 3-5 | 650±50 | 330±5 | 9 |
| 13-3/8"x17-1/2" | 342-347 | 3-5 | 650±50 | 450±5 | 11 |
| 18-5/8"x24" | 475-477 | 3-5 | 600±50 | 610±5 | 12 |
| 20"x26" | 509-511 | 3-5 | 600±50 | 660±5 | 12 |
Our promise: Any equipment sold by TR Solids Control at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, we will bear the direct cost of the damaged parts.
We possess a 24 hr response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
