Product Details:
Payment & Shipping Terms:
|
| Certification: | API 10D | Size: | 4 1/2 ''- 20" |
|---|---|---|---|
| Material: | Carbon Steel | ID: | 345mm |
| Processing Type: | Forging | OD: | 444mm |
| Application: | Well Drilling, Well Drilling | Type: | Cementing Accessories |
| High Light: | oilfield spare parts,drill accessories kit |
||

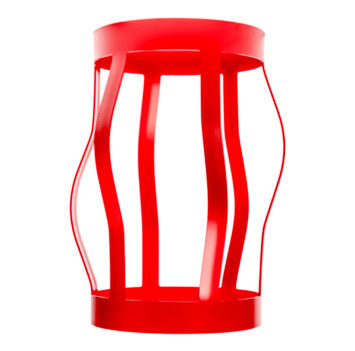

API 10D Drilling Sprial Rigid Centralizer , Slip on Casing Centralizer
Main Introduction
Centralizer cementing tools, it makes simple, and beautiful structure, durable, strong centering force, prone to overcome the original welded lifter desoldering , is a kind of centralizer can ensure quality of drilling cementing. The sort is various, according to the structure can be divided into the roller type, the sliding block type, automatic reversing type, etc. Different structure and material of centralizer, applies to different types of eccentric wear oil well. On the part of eccentric wear prevention, the most critical is installation location, spacing, and number.
High quality centralizers are made of special alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over. Spec and performance index of bow spring casing centralizer meet API Spec 10D.
Main Benefits of Our Casing Centralizer
Technical Parameters of TR Casing Centralizer
|
Model (in) |
Hooping In-Dia. (mm) | Hooping thickness(mm |
Total length (mm) |
Max.Out-Di (mm) |
Amount of spring(mm) |
| 5-1/2" x 8-1/2" | 142-148 | 3-5 | 650±50 | 225±5 | 5 |
| 7" x 9-5/8" | 181-186 | 3-5 | 650±50 | 255±5 | 6 |
| 7" x 8-1/2" | 181-186 | 3-5 | 650±50 | 235±5 | 6 |
| 8-5/8 x 12-1/4" | 223-228 | 3-5 | 650±50 | 330±5 | 8 |
| 9-5/8 x 12-1/4" | 250-255 | 3-5 | 650±50 | 330±5 | 8 |
| 10-3/4 x 12-1/4" | 274-276 | 3-5 | 650±50 | 330±5 | 9 |
| 13-3/8"x17-1/2" | 342-347 | 3-5 | 650±50 | 450±5 | 11 |
| 18-5/8"x24" | 475-477 | 3-5 | 600±50 | 610±5 | 12 |
| 20"x26" | 509-511 | 3-5 | 600±50 | 660±5 | 12 |
Features:
a. Designed for high restoring force and low starting&running force.
b. Undergo special coating process to prevent from rust.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
