Product Details:
Payment & Shipping Terms:
|
Outer Diameter: | 5 7/8 "~ 42" | Connection: | 75/8" Reg Pin -75/8" Reg Box |
---|---|---|---|
Hardfacing: | HF1000 HF2000 HF3000 HF4000 HF5000 | Blades Number:: | 3 Blade Or 4 Blades |
Material: | Alloy Steel, 4145H | Processing Type: | Forging |
Blades Model: | Spiral | Application: | S: Energy & Mining, Well Drilling |
High Light: | oilfield spare parts,drill accessories kit |

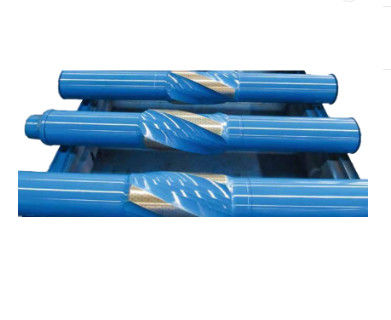

API Petroleum Drill String Stabilizer Oil Tools / Oilfield Stabilizer
Main Description
Integral blade stabilizer is an important tool in the drilling engineering to control the well deviation. It can stabilize the drilling tools in the drilling process of oil, gas and geological exploration. It can increase the bit life, drilling speed and well bore quality. There are two kinds of integral stabilizers: spiral integral blade stabilizer and straight integral blade stabilizer.
TR Solids Control is a main supplier of drilling stabilizer in China. Our API standard oilfield stabilizers are manufactured from one solid bar of AISI 4145H modifed steel,usually have 3 blade or 4 blades.Professional heat-treatment process gurantees the mechanical strengths meet the requirments of API SPEC7-1.Hardness of 285-341HB can be assured bith 1'' beneath the outer suiface and 4 quadrant across the neck OD.
Hard-facing Type
HF 1000 (crushed carbide)
HF 2000 (crushed carbide and tungsten traps)
HF 3000 (T.C.I. spray matrix spray powder and tungsten insert)
HF 4000 (buttons)
HF 5000 (technodur)
Technical Data of TR Drilling Stabilizer
Bit Size (in) |
Working OD (mm) |
End OD of body(mm) |
ID (mm) |
Length (mm) |
Thread code on both ends | |||
Drill string type | Near bit type | |||||||
Top | Down | Top | Down | |||||
6 | 152.2 | 121 | 51 | 1200 | NC38 | 3 1/2 REG | ||
6 1/4 | 158.7 | |||||||
6 1/2 | 165.1 | |||||||
7 1/2 | 190.5 | 159 | 57 | 1600 | NC46 | 4 1/2 REG | ||
7 7/8 | 200 | |||||||
8 3/8 | 212.7 | 159 165 |
71 | 1600 1800 |
NC46 NC50 |
|||
8 1/2 | 215.2 | 159 165 178 |
||||||
8 3/4 | 222.2 | |||||||
9 1/2 | 241.3 | 178 197 |
1600 | NC50 | NC50 | NC50 | ||
9 5/8 | 244.5 | 1800 | 6 5/8 REG | |||||
9 7/8 | 250.8 | |||||||
12 1/4 | 311.2 | 203 209 |
76 | 1800 | NC56 6 5/8 REG |
NC56 6 5/8 REG |
NC56 6 5/8 REG |
6 5/8 REG |
16 | 406 | 229 241.3 |
2000 2200 |
NC61 7 5/8 REG |
NC61 7 5/8 REG |
NC61 7 5/8 REG |
NC61 7 5/8 REG |
|
17 1/2 | 444.5 | |||||||
24 | 609.6 | |||||||
26 | 660.4 | |||||||
28 | 711.2 | |||||||
Note: Stabilizer can be made according to customer’s special requirement. |
Options Available
1. Integral blade, Welded blade/ Spiral Blade, Straight Blade
2. Alloy steel, Non-magnetic steel
3. String Type, Near Bit Type
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
