Product Details:
Payment & Shipping Terms:
|
| Outer Diameter: | 5 7/8 "~ 42" | Connection: | 75/8" Reg Pin -75/8" Reg Box |
|---|---|---|---|
| Hardfacing: | HF1000 HF2000 HF3000 HF4000 HF5000 | Blades Number:: | 3 Blade Or 4 Blades |
| Material: | Alloy Steel, 4145H | Processing Type: | Forging |
| Blades Model: | Spiral | Application: | S: Energy & Mining, Well Drilling |
| High Light: | oilfield spare parts,drill accessories kit |
||

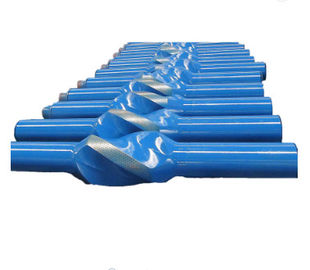

Oil Integral Spiral Blade String Drilling Stabilizer for Oilfield
Product Introduction
Integral blade stabilizer is an important tool in the drilling engineering to control the well deviation. It can stabilize the drilling tools in the drilling process of oil, gas and geological exploration. It can increase the bit life, drilling speed and well bore quality. There are two kinds of integral stabilizers: spiral integral blade stabilizer and straight integral blade stabilizer.
Hardfacing type: HF1000, HF2000, HF3000, HF4000.
Also known as the centralizer, it is a tool for stabilizing the downhole drilling tool and acting as an anti-slope. A device that is attached to a section of the drill string near the large diameter drill to stabilize the direction of the drill.
The details of Integral Spiral Blade Stabilizer as follows:
1. Material: AISI 4145H Mod Alloy steel, Non magnetic steel, etc.
2. Types: Drill String type and Near bit type.
3. Use: It is mainly used to stabilize the drilling tools in the process of drilling hole.
4. Standard: API Spec 7-1 or SY/T5051-91Standard.
5. Inspection&Test: When producing, traceability are maintained from the receipt of raw material to completion of final products, and serial numbers are die-stamped on each workpiece body. During each manufacturing process, inspection and test are performed.
Technical Data of Our Integral Blade Stabilizer
|
Bit Size (in) |
Working OD (mm) |
End OD of body(mm) |
ID (mm) |
Length (mm) |
Thread code on both ends | |||
| Drill string type | Near bit type | |||||||
| Top | Down | Top | Down | |||||
| 6 | 152.2 | 121 | 51 | 1200 | NC38 | 3 1/2 REG | ||
| 6 1/4 | 158.7 | |||||||
| 6 1/2 | 165.1 | |||||||
| 7 1/2 | 190.5 | 159 | 57 | 1600 | NC46 | 4 1/2 REG | ||
| 7 7/8 | 200 | |||||||
| 8 3/8 | 212.7 | 159 165 |
71 | 1600 1800 |
NC46 NC50 |
|||
| 8 1/2 | 215.2 | 159 165 178 |
||||||
| 8 3/4 | 222.2 | |||||||
| 9 1/2 | 241.3 | 178 197 |
1600 | NC50 | NC50 | NC50 | ||
| 9 5/8 | 244.5 | 1800 | 6 5/8 REG | |||||
| 9 7/8 | 250.8 | |||||||
| 12 1/4 | 311.2 | 203 209 |
76 | 1800 | NC56 6 5/8 REG |
NC56 6 5/8 REG |
NC56 6 5/8 REG |
6 5/8 REG |
| 16 | 406 | 229 241.3 |
2000 2200 |
NC61 7 5/8 REG |
NC61 7 5/8 REG |
NC61 7 5/8 REG |
NC61 7 5/8 REG |
|
| 17 1/2 | 444.5 | |||||||
| 24 | 609.6 | |||||||
| 26 | 660.4 | |||||||
| 28 | 711.2 | |||||||
| Note: Stabilizer can be made according to customer’s special requirement. | ||||||||
Optional Stabilizers
We offer several options for IBS, in both alloy steel and non-magnet materials:
● Spiral Integral Blade Stabilizer;
● Straight Integral Blade Stabilizer;
● Non-Magnet Integral Blade Stabilizer.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
