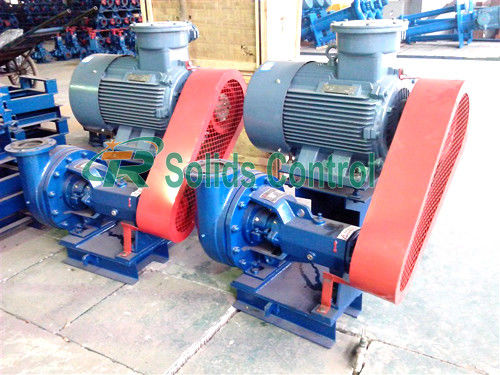

Large Capacity JQB6545 Drill Fluid Pump Steel Material With 980kg Weight

Large Capacity JQB6545 Drill Fluid Pump Steel Material With 980kg Weight
Large Capacity JQB6545 Drill Fluid Pump Steel Material With 980kg Weight
video play

Large Image :  Large Capacity JQB6545 Drill Fluid Pump Steel Material With 980kg Weight

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRJQB6545
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 15 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 50000 Sets / Month
Detailed Product Description
Material: Steel Color: Green
Flow: 150m3/h Lift: 45m
Motor: 55kw Weight: 980kg
Dimension: 1050*1000*1360mm Application: Oil & Gas Drilling, Trenchless HDD & Tunnelling
High Light:

drill fluid pump


cutter pump

API Standard JQB6545 Drilling Oilfield Shear Pump with Large Capacity




JQB shear pump is mainly used for conveying, shearing, turning of soap liquid and lipid in the processing process of lubricating oil and grease.It is the lubricating oil, grease industry ideal transmission, pressure equipment. TRJBQ serial shear pump is a special pump for solid-control drilling fluid additives, with 4 specifications, suitable for power grids of 50Hz and 60 Hz, and it has both Metric and British systems as measuring standards.


TR Solids Control is a professional manufacturer engaged in shear pump with rich experience. Our shear pump can mix high property drilling mud very soon. Decrease the mixing time by much and enhance the drilling efficiency with great cost control, shear pump helps much on high quality drilling mud demand for well drilling.


Design Features of TRJQB Series Shear Pump

  1. TR bearings are internationally renowned brands SKF, quality assured.
  2. We use special impeller and shear board, shear efficiency> 95%.
  3. Oil seal adopts imported fluorine plastic seal, with good cooling capacity.
  4. Pump body adopts wear-resistant alloy cast iron, with longer service life.
  5. Pump shell wall is thick, made by casting mold. Wear-resistant, fine appearance.
  6. Material of mechanical seal is carbide alloy, its life is 5 times than normal.

Main Technical Data of TR Shear Pump


Model Flow Rate Lift Motor Weight Dimension
TRJQB6545 150m3/h 45m 55kw 980kg 1050×1000×1360mm
TRJBQ6535 100m3/h 35m 37kw 800kg 1050×1000×1230mm
TRJBQ5430 60m3/h 30m 30kw 650kg 1050×1000×1100mm
TRJBQ4330 40m3/h 30m 18.5kw 450kg 1050×1000×900mm


Large Capacity JQB6545 Drill Fluid Pump Steel Material With 980kg Weight 0


TR shear pump can greatly improve the hydration degree of the soil particles. The degree of dispersion and hydration of soil particles in water depends on: electrolyte content, time, humidity, quantity and concentration of surface exchangeable cations. Under the same other conditions, the use of shear pump can greatly accelerate the dispersion of soil particles, so as to greatly accelerate the hydration progress of particles, so that the mud has good rheological properties. Especially, it is better to use attapulgite and Haicang stone powder to prepare sea water mud in offshore drilling. Using shear pump can save more than 30% of earth moving.


If you have any questions please contact us freely. You must get satisfied solutions on TRJQB Shear pump just contact TR Solids Control freely. The qualified products while economical cost with swift delivery and circumspect service. We are looking forward to cooperating with you!


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet


Customer's satisfaction is the highest pursuit of TR Solids Control.
