Product Details:
Payment & Shipping Terms:
|
| Specification:: | 9000X2300X2300 | Port: | Tianjing, Shanghai Etc. |
|---|---|---|---|
| Capacity: | 500GPM | Shale Shaker: | TRZS703/TRZS585 |
| Screen Area: | 2.7m2 | Mud Cleaner: | TRQJ250*1S-100*8N |
| Desander Cyclones: | 10"*1pc | Desilter Cyclones: | 4"*8pcs |
| Slurry Pump: | TRSB6*5-11J | Jet Mud Mixer: | TRSLH150-35(37kw) |
| Highlight: | mud recycling system,mud treatment system |
||

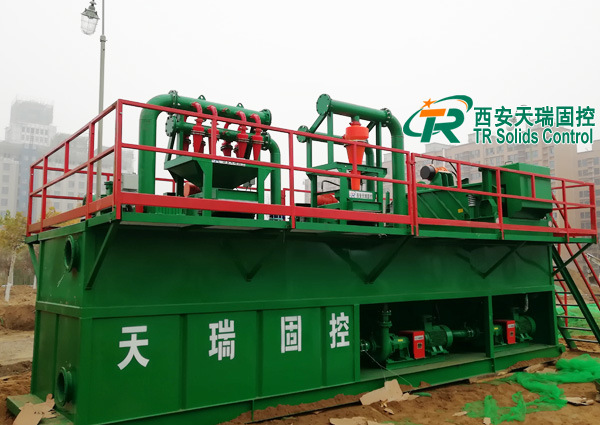

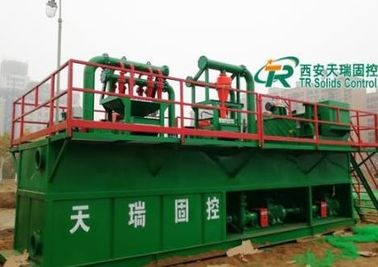

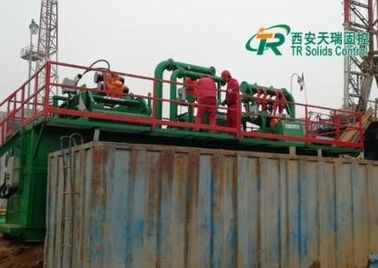

Durable Oil Drilling Mud System Solids Control High Efficiency For Recycling
Main Descrption

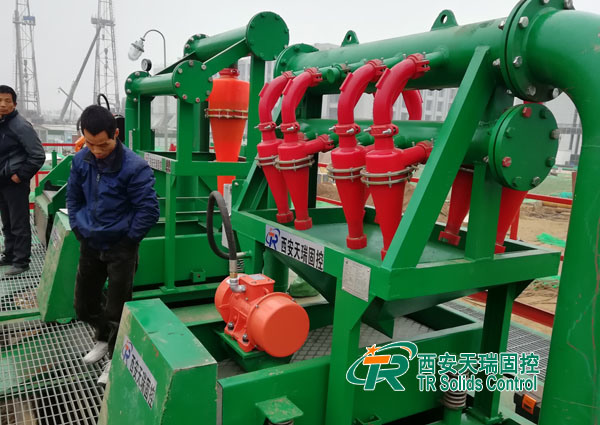

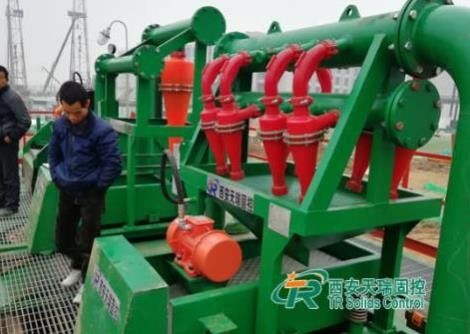

TR Oil Drilling Mud System for Oil or HDD is developed, designed and manufactured to meet trenchless technology requirements at home and abroad and is applied in purification treatment of mud returned from underground during horizontal directional drilling process. Cuttings with big particle sizes are separated by shale shaker, mud cleanerand other solids control equipment. Mud materials required are added and evenly mixed for circulation via jet mud mixer to meet performance requirements for reuse. Mud is pumped into horizontal directional drilling mud system by mud pump for recycling.
Function of Oil Drilling Mud System
Main Specifications of TR Oil Drilling Mud System
| Model | TRHDD-200 | Model | TRHDD-500 | TRHDD-1000 |
| Capacity | 200GPM (50m3 /h) | Capacity | 500GPM (120m3 /h) | 1000GPM (240m3 /h) |
| Shale Shaker | TRZS752S | Shale Shaker | TRZS703/TRZS585 | TRZS703/TRZS585 |
| Upper Screen Area | 0.875m2 | Screen Area | 2.7m2 | 2X2.7m2 |
| Upper Screen Area | 1.35m2 | Mud Cleaner | TRQJ250X1S-100X8N | TRQJ250X2S-100X12N |
| Hydrocyclone | 4" |
Mud Cleaner Mud Cleaner |
10"×1pcs | 10"×2pc |
| Hydroclycolone Qty | 4 pcs | Desilter Cyclone | 4"×8pcs | 4"×12pcs |
| Supply Pump Model | TRSB4X3-12J | Bottom Screen Area | 1.35m2 | 2.12m2 |
| Slurry Pump Model | TRSB4X3-11J | Supply Pump | TRSB6X5-11J*2 | TRSB8X6-11J*2 |
| Mud Hopper | TRSLH100 | Slurry Pump | TRSB6X5-12J | TRSB8X6-12J |
| Gross Power | 44kW | Jet Mud Mixer | TRSLH150-35(37KW) | TRSLH150-35(45KW) |
| Total Volume | 5m3 | Mud Agitator | TRJBQ7.5 | TRJBQ7.5 |
| Dimension | 4000×2360×2940mm | Gross Power | 130kW | 184kW |
| Weight | 5500kg | Total Volume | 15m3 | 30m3 |
| Dimension | 10000×2360×4228mm | 12100×2630×4438mm | ||
| Weight | 17000kg | 20000kg |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
