| Material: | Q235 | Type: | Oil And Gas Drilling Mud System |
|---|---|---|---|
| Production Capacity: | 10 Set / Month | Certification: | ISO 9001:2008 |
| Mud Tank: | 270m3/h | Storging Tank: | 160m3/h |
| Shale Shaker: | 360m3/h | Vacuum Degasser: | 360m3/h |
| Desander: | 320m3/h | Desilter: | 320m3/h |
| Highlight: | mud recycling system,mud treatment system |
||
Industrial Oil Rig Mud System Solids Control System High Temperature Resistance
Product Introduction:

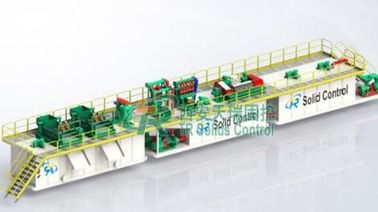

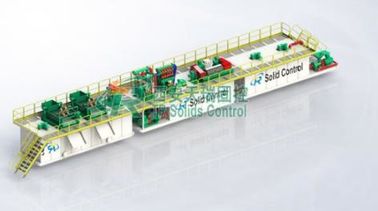

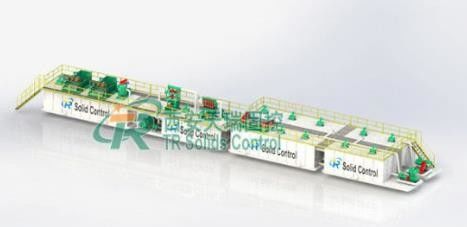

Oil Drilling Mud System is a kind of a multi-tank mud system, it is also called solids control system, or mud circulation system for the oil gas drilling rigs. Our TR oil drilling mud system is available for different oil drilling rig sizes from 250HP to 3000 HP with different capacity. With complete five phrase purification equipment shale shaker, vacuum degasser, desander, desilter, decanting centrifuge, TR oilfield solids control system ensures good and efficient treatment effects of removing solids particles and gas bubbles in oil and gas drilling fluids. We design and customize detailed technical drawing of the system according to clients' special requirements and drilling site application.
TRZJ series mud system can be designed to meet different kinds of conditions in oil and gas drilling field. It has a good performance of cold-resistent, high temperature resistance, anti-explosion, anti-leakage, anti-corrosion, raining proof, adapt to wicked condition of well drilling. It's very popular among big oil drilling companies.
Design Features of TR Oil Drilling Mud System:
Main Specifications of TR Oil Drilling Mud System:
| Configure Equipment | ZJ70 | ZJ50 | ZJ40 | ZJ30 | ZJ20 | ZJ10 |
| Mud Tank | ≥270m³/h | ≥200m³/h | ≥180m³/h | ≥160m³/h | ≥160m³/h | ≥80m³/h |
| Storing Tank | ≥160m³/h | ≥120m³/h | ≥80m³/h | ≥80m³/h | × | × |
| Shale Shaker | ≥360m³/h | ≥280m³/h | ≥240m³/h | ≥180m³/h | ≥140m³/h | ≥80m³/h |
| Vacuum Degasser | 360m³/h | 300m³/h | 240m³/h | √ | √ | × |
| Desander | ≥320m³/h | ≥240m³/h | ≥200m³/h | ≥180m³/h | ≥120m³/h | √ |
| Desilter | ≥320m³/h | ≥240m³/h | ≥200m³/h | √ | × | × |
| Middle Speed Centrifuge | 50m³/h | 50m³/h | 40m³/h | √ | √ | × |
| High Speed Centrifuge | 40m³/h | 40m³/h | √ | × | × | × |
| Jet Mud Mixer | ≥300m³/h | ≥240m³/h | ≥200m³/h | ≥180m³/h | ≥120m³/h | ≥80m³/h |
| Shear Pump | ≥120m³/h | ≥120m³/h | ≥120m³/h | ≥120m³/h | ≥100m³/h | × |
| Charging Pump | ≥240m³/h | ≥200m³/h | ≥180m³/h | ≥150m³/h | ≥100m³/h | × |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
