Home ProductsDrilling Mud Agitator

Mud System Mixing Gearbox Agitator Excellent Performance Long Service Time

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

Mud System Mixing Gearbox Agitator Excellent Performance Long Service Time

Mud System Mixing Gearbox Agitator Excellent Performance Long Service Time
Mud System Mixing Gearbox Agitator Excellent Performance Long Service Time
video play

Large Image :  Mud System Mixing Gearbox Agitator Excellent Performance Long Service Time

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRJBQ3
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden or iron pallet
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000 Sets / Month
Detailed Product Description
Motor Power: 3kw Impeller Speed: 60/72r/min
Impeller Diameter: 600mm Impeller Qty: 1pcs
Ex Standard: ExdIIBt4/IECEX/A-TEX Dimension: 909*525*527mm
Weight: 190kg Key Words: High Quality 3kw Mud Agitator For Well Drilling Fluid Mixing System, With Excellent Performance And Long Service Time
High Light:

mud tank agitator

,

fluid mixing equipment

Gear Type Mud Agitator for Mud System Mixing , Good Quality Drilling Mud Agitator



Product Introduction

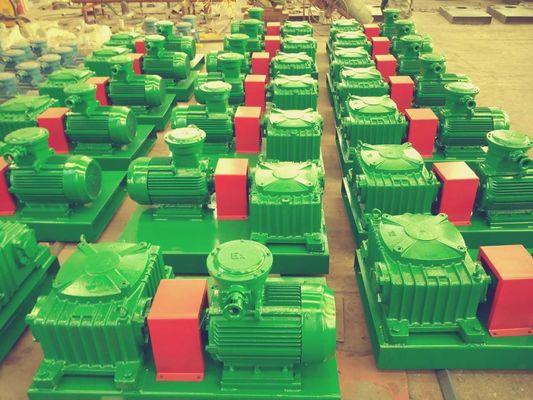

Mud agitator is a kind of solids control equipment combined of reducer and explosion-proof motor. It's easy to maintain, and suitable for use in the field of harsh conditions. Mud agitator has a large agitation strength, wide spread, and can reduce starting torque. Motor and gear box will be connected by coupling directly. Agitation speed is more stable. Shaft and blades are customizable. Welcome to contact us for an inquiry at any time.



Our TRJBQ series mud agitator is relatively low shear and low energy solids control equipment, so it’s easy to operate and inexpensive to maintain. This will ensure that mud additives are homogeneously mixed to prevent dead spots. Agitators will keep the active mud system flowing even when the pumps are disengaged.



Key Benefits of TR drilling mud agitator:

  1. Compact structure, small size.
  2. Power available ranging from 3 to 22KW.
  3. More reliable worm gear.
  4. Adaptable for different application.
  5. Motor and gear box connected by coupling directly. Agitation speed is more stable.
  6. Running smoothly, small operating noise, long usage life, less wearing parts, and ecomomical.
  7. Good heat exchange performance makes agitator faster cool down.

Parameters of TR Drilling Mud Agitator:



Model Motor Power Impeller Speed Impeller Diameter Impeller Qty. Explosion-proof Standard Weight Dimension
TRJBQ3 3kw 60/72r/min 600mm 1



ExdIIBt4/IECEX/A-TEX

190kg 909×525×527mm
TRJBQ5.5 5.5kw 600mm 1 250kg 1072×610×588mm
TRJBQ7.5 7.5kw 650mm 2 380kg 1157×670×607mm
TRJBQ11 11kw 800mm 2 430kg 1297×740×692mm
TRJBQ15 15kw 950mm 2 480kg 1330×890×747mm
TRJBQ18.5 18.5kw 1000mm 2 740kg 1510×890×753mm
TRJBQ22 22kw 1100mm 2 780kg 1529×890×753mm
Remark Above weight and dimension exclude mud agitator shaft.



Mud System Mixing Gearbox Agitator Excellent Performance Long Service Time 0



We are a well-know manufacturer of mud agitator in the market. TR Solids Control exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing“Made in China”as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
