5.5kw Drilling Mud Agitator Oil Rig Drilling Equipment Compact Structure

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

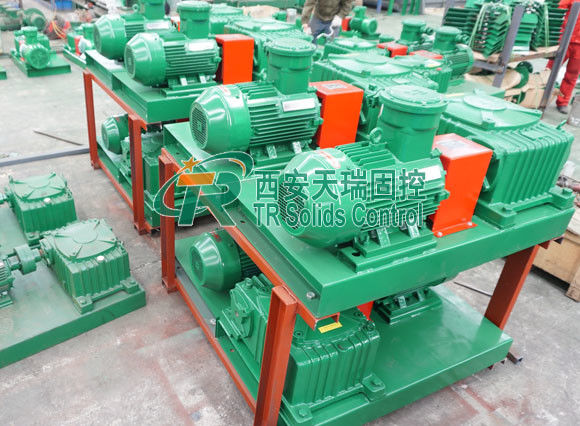

5.5kw Drilling Mud Agitator Oil Rig Drilling Equipment Compact Structure

5.5kw Drilling Mud Agitator Oil Rig Drilling Equipment Compact Structure
5.5kw Drilling Mud Agitator Oil Rig Drilling Equipment Compact Structure
video play

Large Image :  5.5kw Drilling Mud Agitator Oil Rig Drilling Equipment Compact Structure

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRJBQ5.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden or iron pallet
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000 Sets / Month
Detailed Product Description
Motor Power: 5.5kw Impeller Speed: 60/72r/min
Impeller Diameter: 600mm Impeller Qty: 1pc
Ex Standard: ExdIIBt4/IECEX/A-TEX Dimension: 1072*610*588mm
Weight: 250 Kg Key Words: High Quality 5.5kw Mud Agitator For Well Drilling Fluid Mixing System, With Excellent Performance And Long Service Time
High Light:

mud tank agitator

,

fluid mixing equipment

Top Quality 5.5kw Mud Agitator Oil Rig Drilling Equipment Mud Agitator



Introduction



TR can manufacture mud agitator with worm and wheel gearbox, also the agitator with helical bevel gear box. The high performance, efficiency, and quality is appreciated by many clients. Helical bevel geared agitator will transfer more efficient to shaft save more energy than common worm and wheel gearbox. No matter for horizontal or vertical agitator, there is helical bevel gearbox available.



TRJBQ series mud agitator is relatively low shear and low energy solids control equipment, so it’s easy to operate and inexpensive to maintain. This will ensure that mud additives are homogeneously mixed to prevent dead spots. TR Solids Control manufactures JBQ series mud agitator with reasonable price and superior quality. Besides, our shale shaker, mud cleaner, vacuum degasser, centrifugal pump and shaker screens are popular among clients. We are sincerely looking forward to hearing from you.



Characterstics of our mud agitator:

  1. The gearbox use worm gear. More reliable.
  2. Small size, compact structure.
  3. Running smoothly, small noise, long usage life, less wearing parts, and cost-saving.
  4. Good heat exchange performance makes agitator faster cool down.
  5. Motor and gear box will be connected by coupling directly. Agitation speed is more stable.
  6. Power available ranging from 3 to 22KW.

Parameters of Our Mud Agitator



Model Motor Power Impeller Speed Impeller Diameter Impeller Qty. Explosion-proof Standard Weight Dimension
TRJBQ3 3kw 60/72r/min 600mm 1



ExdIIBt4/IECEX/A-TEX

190kg 909×525×527mm
TRJBQ5.5 5.5kw 600mm 1 250kg 1072×610×588mm
TRJBQ7.5 7.5kw 650mm 2 380kg 1157×670×607mm
TRJBQ11 11kw 800mm 2 430kg 1297×740×692mm
TRJBQ15 15kw 950mm 2 480kg 1330×890×747mm
TRJBQ18.5 18.5kw 1000mm 2 740kg 1510×890×753mm
TRJBQ22 22kw 1100mm 2 780kg 1529×890×753mm
Remark Above weight and dimension exclude mud agitator shaft.



5.5kw Drilling Mud Agitator Oil Rig Drilling Equipment Compact Structure 0



All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
