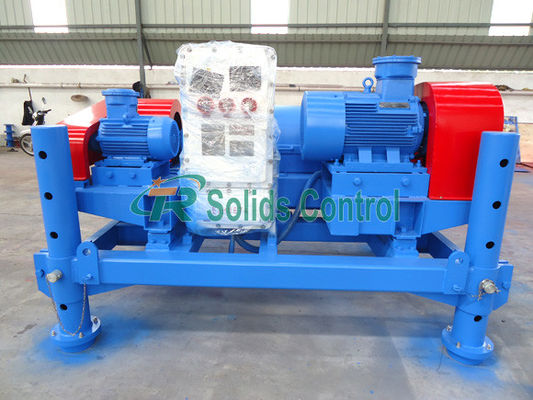

Oil Sludge Decanter Centrifuge With High Speed 1000mm Bowl Length Wear Resistant

Oil Sludge Decanter Centrifuge With High Speed 1000mm Bowl Length Wear Resistant
Oil Sludge Decanter Centrifuge With High Speed 1000mm Bowl Length Wear Resistant
video play

Large Image :  Oil Sludge Decanter Centrifuge With High Speed 1000mm Bowl Length Wear Resistant

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRLW450N-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or plyerwood carton
Delivery Time: Within 25 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20 Sets / Month
Detailed Product Description
Bowl Diameter: 450mm Bowl Speed: 2200r/min
G-Force: 1215 Differential Speed: 50r/min
Auxiliary Motor Power: 7.5kw Weight: 2700kg
Bowl Length: 1000mm Capacity: 50m³/h
Separation Point: 5-7μm Main Drive Motor: 30kw
Ex Standard: ExdIIBt4/IECEX/A-TEX Dimension: 2600*1860*1750mm
High Light:

drilling mud decanter centrifuge


liquid solid separation centrifuge

Oil Sludge Decanter Centrifuge With High Speed , Mud Decanter Centrifuge


Benefits of TRLW Series Decanter Centrifuge


1. Straight and cone section of the drum are made from 2205 duplex stainless steel material, adopt centrifugal casting process;
2. Remaining components of the drum assembly are made from SS316L;
3. Screw carrier adopts YG6 wear-resistant alloy sheet protection. With long life, easy maintenance and replacement;
4. Diversion port of screw pusher and slag-drip opening of the drum are protected by replaceable wear-resistant alloy sleeve, delaying the service life and maintenance cycle.
5. Drum assembly is protected with demountable support frame in transit, preventing damage to bearing;
6. Using imported SKF and NSK bearings to improve equipment stability and bearing life;
7. Frequency control facilitates customers to adjust speed at any time, meeting different working conditions;
8. Schneider or Siemens electrical components. Current overload & mechanical limit switch dual protections.
Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference. Ruggedly built for oilfield and industrial services, it is especially effective in environmentally sensitive areas. Our decanter centrifuge delivers high fluid-recovery rates and efficient solids control to significantly reduce the costs of makeup fluids and disposal.


TRLW series decanter centrifuge which made by our factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. In the gravity force field or centrifugal force field, the light liquid phase, the heavy liquid phase and the solid phase with different density and mutually insoluble in the mixed liquid, respectively gain different sedimentation speed, and thus separate and stratify. In the gravity force field it is called gravity separation,while in the centrifugal force field it is called centrifugal separation.
Technical Data of TRLW Series Decanting Centrifuge

Bowl Diameter600mm450mm450mm355mm355mm
Bowl Length1500mm1000mm1250mm1250mm1250mm
Bowl Speed2200r/min2200r/min3200r/min3200r/min0~3200r/min
Max Capacity90m³/h50m³/h50m³/h40m³/h40m³/h



Gear Box


Gear Box


Main Motor


Motor Power







(Note: Rotary speed can be adjustable as per user's requirements)
Oil Sludge Decanter Centrifuge With High Speed 1000mm Bowl Length Wear Resistant 0

If you are finding a high quality decanter centrifuge to separate solids from drilling fluid, TR Solids Control is your best choice. Our centrifuge is with competitive price and good performance. Nowadays it’s widely used in oil & gas drilling, drilling waste management, also sewage treatment. Once you have any inquiry about decanter centrifuge, welcome to contact with us!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
